Suspended Type Magnet Iron Separator Manufacturers, Suppliers

Product Description

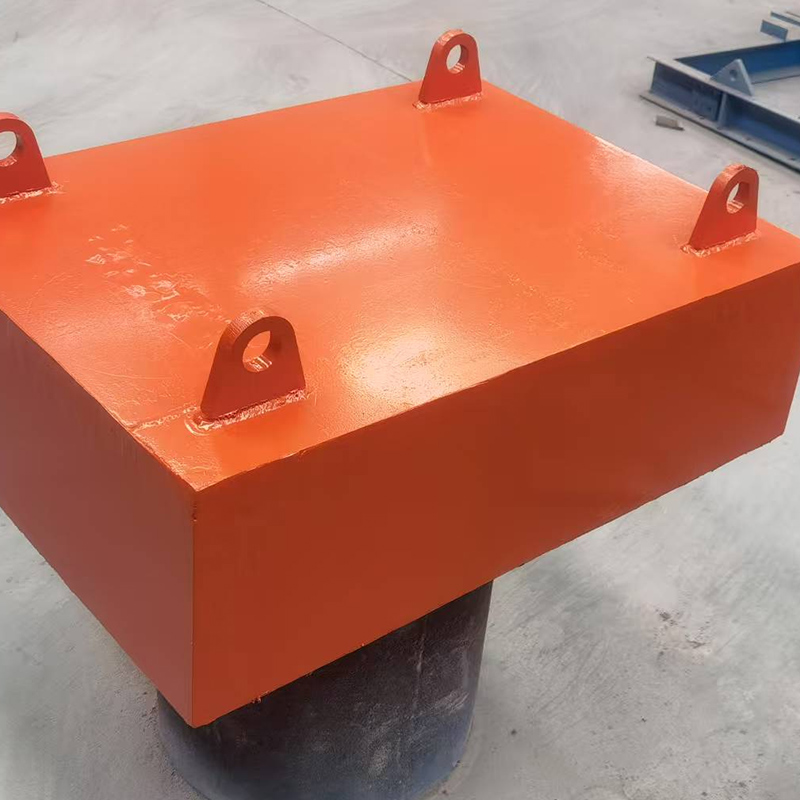

The RCYB series suspended permanent magnet iron remover belongs to strong magnetic equipment. The core magnetic source usually uses neodymium iron boron (NdFeB) or ferrite permanent magnet materials, which can provide high surface magnetic field strength. The magnetic field strength of some products ranges from 1500gs to 5000gs, and even up to 3000 Gauss to 12000 Gauss, fully meeting the definition standard of "strong magnetism" in the industrial field.

This strong magnetic field can effectively adsorb ferromagnetic impurities in materials, such as iron blocks, iron filings, etc., and is widely used in industries such as cement, chemical, mining, and building materials to ensure smooth production processes and stable product quality.

Technical parameter

Model/Parameter		Suitable belt width mm	Rated lifting height h ≤ mm	Suitable belt peed ≤ m/s	Material thickness ≤ mm	Weight kg	Outline dimension mm			Magnet Category
Model/Parameter		Suitable belt width mm	Rated lifting height h ≤ mm	Suitable belt peed ≤ m/s	Material thickness ≤ mm	Weight kg	L	W	H	Magnet Category
Strong magnetic	RCYB-4A	400	120	2.5	80	45	400	250	120	Rare earth magnet
	RCYB-5A	500	130		100	66	500	260	130
	RCYB-6A	600	150		130	97	600	350	160
	RCYB-8A	800	200		170	248	800	500	150
	RCYB-10A	1000	230		200	390	1000	600	160
Light	RCYB-4-1	40	100		60	75	400	250	140	Complex magnet
	RCYB-5-1	500	120		80	96	500	260	160
	RCYB-6-1	600	140		100	158	600	350	180
	RCYB-8-1	800	180		140	480	800	500	300
Standard	RCYB-4	400	150		100	115	400	300	230	Complex magnet
	RCYB-5	500	180		120	206	500	350	260
	RCYB-6	600	175		140	295	600	450	280
	RCYB-6.5	650	200		160	450	650	600	300
	RCYB-8	800	250		200	680	950	950	380
	RCYB-10	1000	300		250	1180	1100	1000	380
