CXJ Dry Powder Pipe Iron Separator Suppliers, Manufacturers

Product Description

Scope of Application

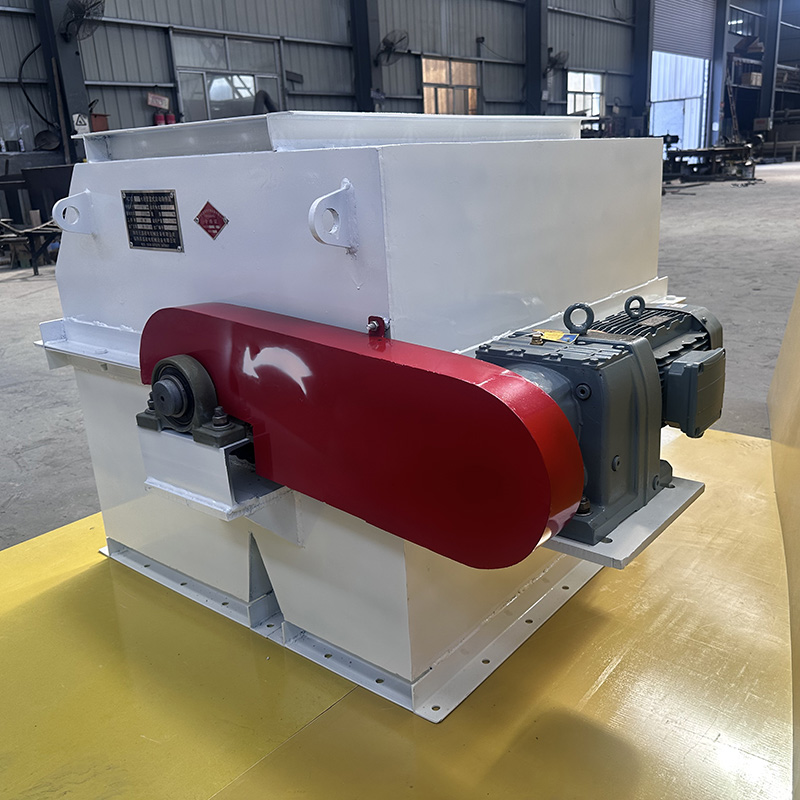

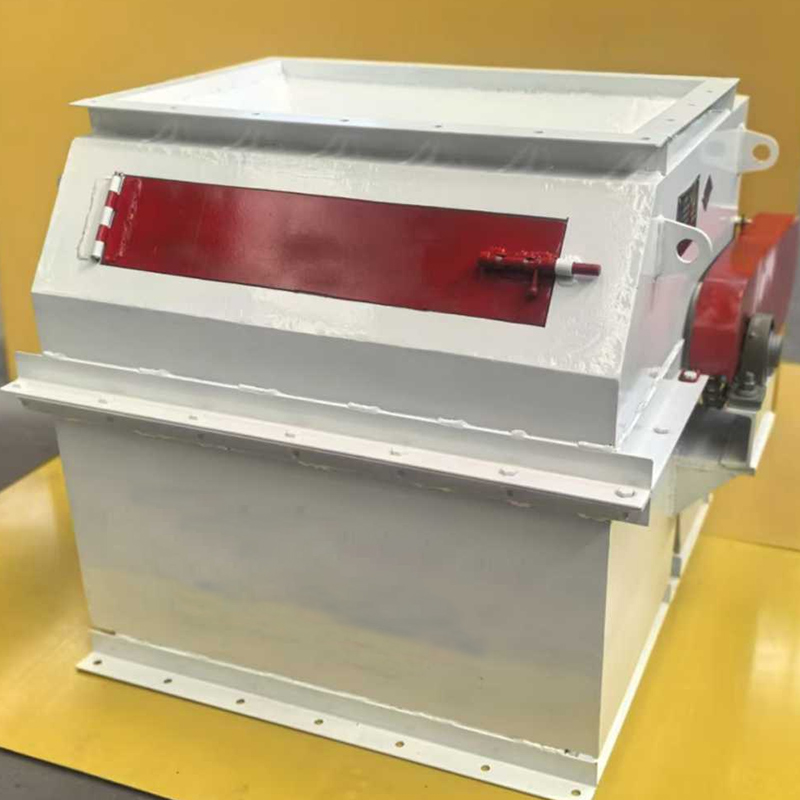

The CXJ series dry powder permanent magnet drum magnetic separator (from single drum to four drum) is a magnetic separation equipment that continuously and automatically removes iron from dry powder materials. Its internal magnetic path design is unique High performance permanent magnet Congee material is used as the magnetic source. Strong magnetic field, strong suction force, high iron removal rate. It has the characteristics of maintenance free, energy saving, safe and reliable use, and can adjust and control the input quantity, suitable for different requirements of pulling. The product is widely used in grinding tools. Refractory materials. Non metallic minerals. Carbon black. Grain Feed. Industries such as chemical raw materials.

Technical parameter

Model/Parameter	Outline dimension mm	Drum length	Magnetic induction intensity	Number of drums	Drum speed	Productivity	Material particle size	Motor power	Power supply voltage
CXJ-40-Ⅰ	550 x 460 x 660	400	300	≥3800	1	17-28	≤0.6	≤5	0.55
CXJ-60-Ⅰ	830 x710 x930	600	400	≥4000	1		≤1.5	≤5	0.55
CXJ-60- Ⅱ	1070 x925 x1240	600	320	First barrel≥1000 Second barrel≥4000	2		≤2	≤5	1.5
CXJ-60- Ⅲ	1150 x1070 x1700	600	320	First barrel≥1000 Second barrel≥3000 Third barrel≥4000	3		≤2.5	≤6	1.5
CxJ-80-Ⅰ	1180 x820 x1040	800	406	First barrel≥4000	1		≤2	≤8	0.75
CXJ-80- Ⅱ	1420x1220x1570	800	406	First barrel≥1000 Second barrel≥4500	2		≤2.5	≤8	1.5
CXJ-80- Ⅲ	1770 x1260 x1570	800	406	First barrel≥1000 Second barrel≥3000 Third barrel≥4000	3		≤3	≤8	175
