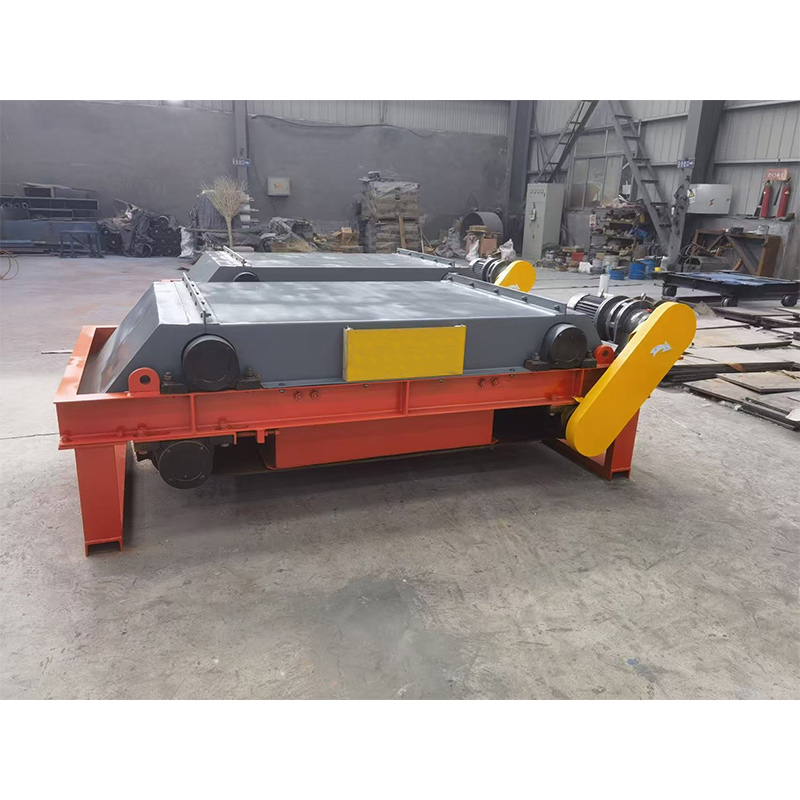

Permanent Magnet Self-Unloading Iron Separator Manufacturers, Suppliers

Product Description

Technical parameter

Model/Parareter	Suitable belt width mm	Rated lifting height h≤mm	Material thinkness ≤mm	Driver power ≤Kw	Suitable belt speed ≤m/s	Weight kg	Outline dimension mm
Model/Parareter	Suitable belt width mm	Rated lifting height h≤mm	Material thinkness ≤mm	Driver power ≤Kw	Suitable belt speed ≤m/s	Weight kg	A	B	C	D	E
RCYD-5	500	150	80	1.5	2.5	910	1900	650	900	810	746
RCYD-6	600	175	120	2.2		1190	2010	670	1050	870	896
RCYD-6.5	650	200	150	2.2		1350	2100	680	1105	890	916
RCYD-8	800	250	170	2.2		1550	2200	720	1200	1070	1096
RCYD-10	1000	300	200	3.0		2350	2500	750	1400	1300	1296
RCYD-12	1200	350	250	4.0		3550	2900	780	1700	1450	1549
RCYD-14	1400	400	300	4.0		4800	3000	810	1900	1590	1760
RCYD-16	1600	450	350	5.5		6500	3200	834	2100	1800	1950
RCYD-18	1800	500	400	5.5		8500	3500	920	2325	2080	2200

Scope of application:

This machine is used in conjunction with various belt conveyors, vibrating conveyors, etc. It can be used to automatically remove 0.1-50kg of ferromagnetic substances from moving materials. Widely used in cement, thermal power generation, metallurgy, and mining Chemical industry, glass. Coal and other industries.
