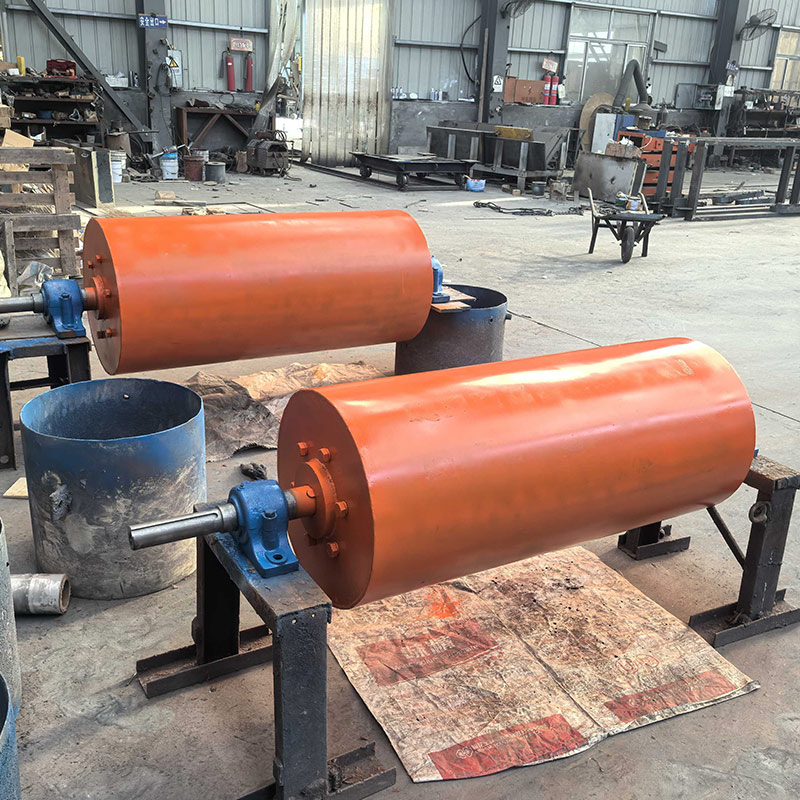

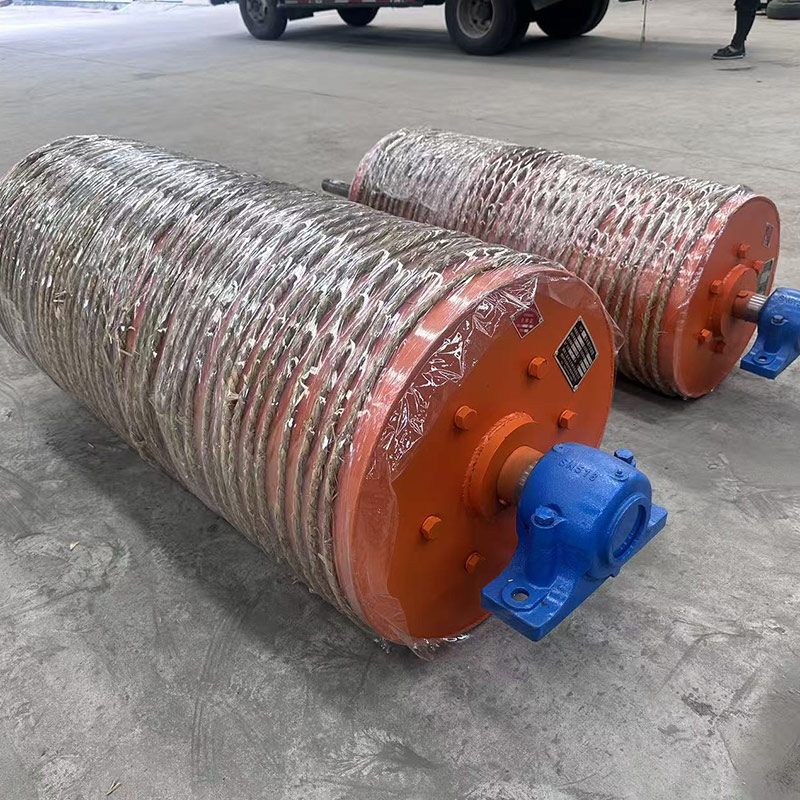

Product Description

Permanent magnet drum is an efficient magnetic separation equipment widely used in industries such as mining, metallurgy, building materials, chemical, power, and food processing. It is mainly used to remove ferromagnetic impurities from materials, improve raw material purity, and protect downstream equipment.

Features:

High performance magnetic system: using new high-performance magnetic materials such as neodymium iron boron magnetic steel and high-quality strontium ferrite materials, with high magnetic field strength and depth, and a sorting particle size limit of up to 450mm.

Simple structure: No additional power supply required, easy to operate and maintain, saving installation space.

Stable and durable: using high-performance hard magnetic materials, long-term use will not demagnetize, and the magnetic core has a lifespan of over 10 years.

Energy saving and environmental protection: Energy consumption is reduced by 80% compared to electromagnetic type, suitable for harsh working conditions.

Flexible adjustment: The magnetic declination adjustment device is flexible and reliable, adapting to different belt speeds.

Application fields:

Mining industry: rough selection after coarse or medium crushing of poor iron ore, and ore selection in the closed circuit roasting operation of hematite reduction.

Building materials industry: Removing metal impurities from cement raw materials.

Steel industry: steel slag processing.

Chemical industry: Remove ferromagnetic impurities from materials.

Power industry: Raw material iron removal.

Food processing industry: Removing tiny ferromagnetic particles.

Garbage disposal: iron selection work.

Working Principle:

A composite magnetic system composed of high-performance hard magnetic materials is used to generate a strong magnetic field, attracting and separating iron substances in the material.

Construction:

It includes an oil cooled motor, a reduction mechanism, an electric drum housing, and a rotating shaft. The outer wall of the housing has an even polygonal magnetic block installation cylinder, and the magnetic block is composed of multiple magnetic strips with consistent polarity direction stacked together.

Classification:

Permanent magnet electric drum: used in conjunction with belt conveyors.

Permanent magnet direct drive electric drum: outer rotor structure, integrated permanent magnet synchronous motor.

Drum permanent magnet magnetic separator: According to the type of magnetic roller, it can be divided into strong magnetic type, weak magnetic type, combination magnetic roller, high temperature resistant magnetic roller, etc.

Technological development:

New rare earth permanent magnet materials enhance magnetic field strength and stability, and intelligent control systems achieve precise control.

Technical parameter

Model/Parameter	Roller diameter Dmm	Adaptive belt width Bmm	roller length mm	Magnetic induction intensity of cylinder table	Rotate speed of roller r/min	Removing iron impurities from powdery materials	Removing iron impurities from lump materials	Weight kg	Outline dimension mm
Model/Parameter	Roller diameter Dmm	Adaptive belt width Bmm	roller length mm	Magnetic induction intensity of cylinder table	Rotate speed of roller r/min	Removing iron impurities from powdery materials	Removing iron impurities from lump materials	Weight kg	A	L1	K	D	H	B
CTZ-32/40	320	400	500	3000	20-30	0.8	10	120	728	1010	100	50	54	14
CTZ-32/50	320	500	600	3000		1	15	150	850	1115	115	50	54	14
CTZ-40/50	400	500	600	3000		2	20	240	850	1115	115	55	60	16
CTZ-50/50	500	500	600	3000		2.5	30	360	850	1115	115	55	60	16
CTZ-32/65	320	650	750	3000		2	20	210	850	1350	135	55	60	16
CTZ-40/65	400	650	750	3000		2.8	30	350	1000	1350	135	55	60	16
CTZ-50/65	500	650	750	3000		4.5	40	420	1000	1350	135	60	64	18
CTZ-63/65	630	650	750	3000		7	45	830	1300	1350	135	90	97	24
CTZ-40/80	400	800	950	3000		8	55	470	1300	1630	175	70	76	20
CTZ-50/80	500	800	950	3000		10	65	600	1300	1630	175	70	76	20
CTZ-63/80	630	800	950	3000		10	80	800	1300	1730	175	70	76	20
CTZ-80/80	800	800	950	4000		12	100	980	1300	1730	175	90	97	24
CTZ-63/100	630	1000	1150	3500		12	120	1200	1300	1730	175	90	97	24
CTZ-80/100	800	1000	1150	4000		15	140	1300	1500	2000	215	110	119	32
CTZ-100/120	1000	1200	1400	4000		20	180	1580	1750	2270	255	130	140	36
CTZ-125/140	1250	1400	1600	4000		30	250	1950	2000	2000	275	150	161	40
