Two-chuck Tube Fiber Laser Cutting Machine
This two-chuck fiber laser tube cutter excels at stability. Cuts, drills, notches in one pass; adapts to various diameters/lengths. Intelligent control ensures consistent precision, streamlining tube processing workflows.
Brand：Gain
Product origin：Weifang,Shandong,China
Delivery time：7-30 days
Supply capacity：500 units/year
Send Inquiry
Product Description
Dual-Chuck Synergistic Clamping for Stable Processing
Adopts front 4-jaw hydraulic chuck and rear 3-jaw pneumatic chuck, delivering dual-point stable clamping. The front chuck provides strong grip (clamping force up to 80kN) for thick-walled pipes, while the rear chuck ensures precise positioning, eliminating pipe deflection during high-speed rotation (up to 80rpm) and cutting.
High-Precision Cutting Performance
Equipped with servo-driven rotary axis and dual-chuck synchronization control, achieving rotation accuracy of ±0.008° and positioning precision of ±0.015mm/m. Supports 0–60° bevel cutting, spiral slotting, and complex 3D contour machining, with edge roughness Ra ≤0.8μm—no secondary deburring needed.
Efficient Fiber Laser Power System
Available with 1500W–8000W high-brightness fiber laser sources (IPG/Raycus optional), cutting 1mm stainless steel pipes at 70m/min and 12mm carbon steel pipes at 20m/min. Laser power stability (fluctuation ≤±0.5%) ensures consistent cutting quality across long production runs.
Intelligent CNC Control & Programming
19-inch industrial touchscreen CNC system integrates dual-chuck coordination logic, pipe parameter libraries (100+ materials), and 3D cutting simulation. Supports DXF/DWG file import and automatic nesting, reducing programming time by 75% and error rates by 95%.

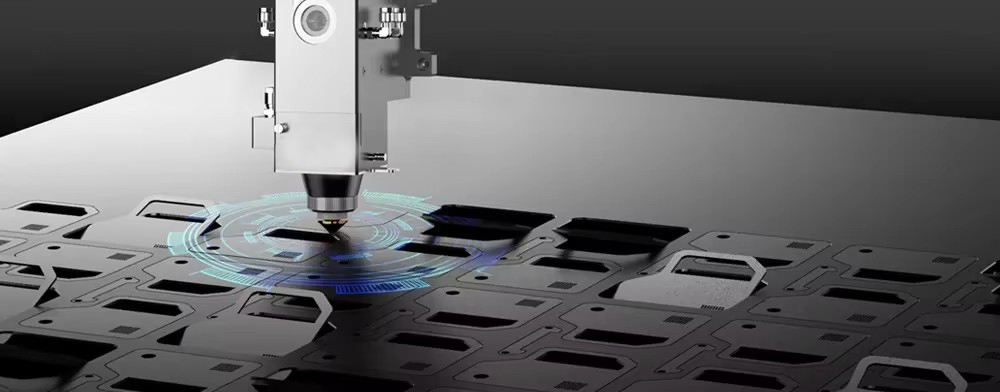

Auto Obstacle-Avoidance Laser Head
Featuring an auto-tracking system, this laser head detects protruding obstacles, significantly lowering damage risks and cutting maintenance costs for laser cutters.

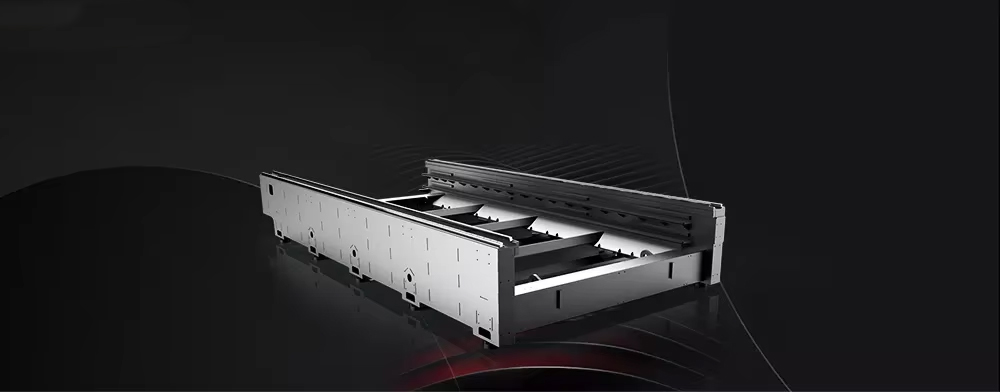

Mortise-and-Tenon Joint Welded Bed
Each frame of the cutting machine tool undergoes mortise-and-tenon joining followed by welding, to achieve perfect mechanical performance as well as better stability and sturdiness.
Sample Display
FAQ
How To Use The Machine After Receving The Machine？
Firstly , when you got machine , you need to contact with us ,our engineer will together with your to deal with it ,secondly ,we will send you user manual or videos before you get the machine ,Thirdly Our professional technician online teach you until you can use it well by yourself.
Why Should You Buy From Us Not From Other Suppliers?
We are professional equipment manufacturer, Our service as below: 1. Factory supply directly 2. 12 months warranty for the whole machine 3. Friendly English version manual and operation video 5. Engineer available to service machinery overs.
What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD,EUR,CNY.
How To Choose A Suitable Machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience. It can be customized according to your requirements.
Do You Have A Setup And Equipment Commissioning Service?
Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug.
