Tube laser cutting machine for metal pipes

Core Capability: Versatile Metal Pipe Compatibility

1.Comprehensive Pipe Type Coverage: Processes round pipes (φ15–220mm), square pipes (15×15–200×200mm), rectangular pipes (15×30–180×250mm), and special-shaped pipes (e.g., oval, hexagonal, and channel pipes). Accommodates pipe lengths up to 8000mm as standard, with optional extended beds for 12000mm-long pipes.

2.Broad Material Suitability: Excels at cutting common and specialty metals, including carbon steel (wall thickness 0.8–20mm), stainless steel (0.5–15mm), aluminum alloy (0.3–12mm), brass (0.5–10mm), and copper (0.3–8mm). Ideal for both low-carbon industrial pipes and high-value alloy pipes used in precision engineering.

3.Thin-to-Thick Wall Versatility: From delicate thin-walled capillary tubes (0.3mm) for medical devices to heavy-duty thick-walled pipes (20mm) for construction machinery, the machine maintains stable cutting performance without material deformation or edge defects.

Precision & Performance: Mastery of Metal Pipe Cutting

1.High-Precision Rotary System: Equipped with a servo-driven 360° rotary axis and 4-jaw self-centering chuck, achieving rotation accuracy of ±0.01° and positioning precision of ±0.02mm/m. The chuck’s adjustable clamping force (pneumatic/hydraulic options) ensures firm grip without damaging pipe surfaces, even for thin-walled profiles.

2.High-Brightness Fiber Laser Source: Available in 1000W–8000W configurations (IPG/Raycus/Lumentum optional), the laser delivers sharp, burr-free cuts with edge roughness Ra ≤1.0μm. Cutting speeds reach 70m/min for 1mm stainless steel pipes and 18m/min for 10mm carbon steel pipes, reducing processing time by 50% compared to traditional sawing or plasma cutting.

3.Advanced Cutting Functionality: Supports complex processing needs, including 0–60° bevel cuts (for seamless welding joints), micro-slotting (width ≥0.5mm), hole drilling (φ1mm+), and 3D contour cutting (e.g., for automotive exhaust components). The dynamic auto-focus laser head adjusts focal length in 0.1s, ensuring consistent quality across uneven pipe walls or tapered sections.

Intelligent Design: Streamline Metal Pipe Processing Workflows

1.Intuitive CNC Control System: Features a 17-inch industrial touchscreen paired with a user-friendly CNC platform, pre-loaded with 100+ metal pipe parameter libraries. Supports DXF/DWG file import, automatic nesting (maximizing material utilization up to 99%), and 3D cutting simulation—reducing programming time by 70% and error rates by 90%.

2.Efficient Pipe Handling: The automatic feeding mechanism with multi-point support frames prevents pipe deflection during processing, enabling continuous batch production of up to 50 pipes per cycle. Optional upgrades include a pipe loading/unloading gantry and length-measuring sensor for fully automated material handling.

3.Zero-Waste Technology: Optimized laser head trajectory and chuck coordination eliminate residual tailings (≤5mm), a critical advantage for minimizing waste of high-cost metals like stainless steel and copper. This translates to significant material cost savings over long production runs.

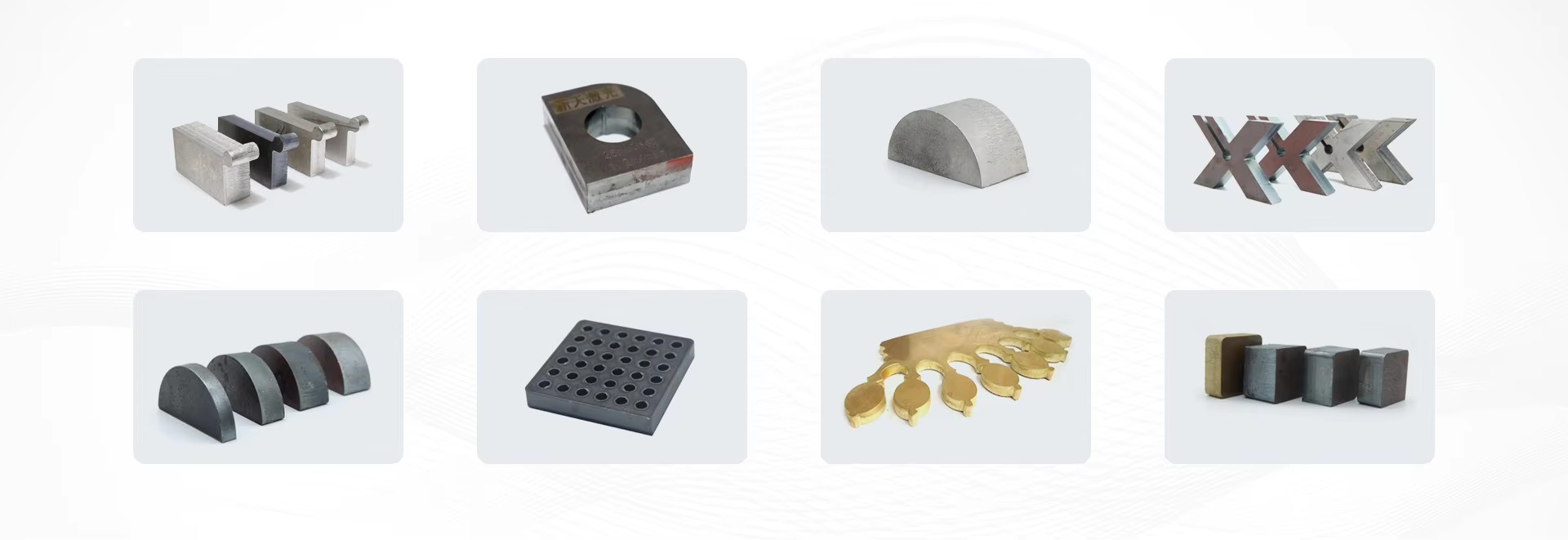

Sample Display

FAQ

How To Use The Machine After Receving The Machine？

Firstly , when you got machine , you need to contact with us ,our engineer will together with your to deal with it ,secondly ,we will send you user manual or videos before you get the machine ,Thirdly Our professional technician online teach you until you can use it well by yourself.

Why Should You Buy From Us Not From Other Suppliers?

We are professional equipment manufacturer, Our service as below: 1. Factory supply directly 2. 12 months warranty for the whole machine 3. Friendly English version manual and operation video 5. Engineer available to service machinery overs.

What Services Can We Provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD,EUR,CNY.

How To Choose A Suitable Machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience. It can be customized according to your requirements.

Do You Have A Setup And Equipment Commissioning Service?

Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug.
