Fiber laser pipe cutting machine

High-Precision Pipe Cutting Performance​

Equipped with a servo-driven 360° rotary axis and 4-jaw self-centering chuck, delivering rotation accuracy of ±0.01° and positioning precision of ±0.02mm/m. Achieves smooth, burr-free cuts (Ra ≤1.0μm) on pipes, supporting 0–60° bevel cutting and complex contour machining without secondary finishing.​

Versatile Pipe Compatibility​

Handles a wide range of pipe types and sizes: round pipes (φ15–200mm), square pipes (15×15–180×180mm), rectangular pipes (15×30–160×250mm), and special-shaped pipes. Accommodates wall thicknesses from 0.8mm (aluminum) to 18mm (carbon steel), metals like stainless steel, carbon steel, aluminum alloy, and brass.​

Efficient Fiber Laser Power System​

Available with 1000W–6000W high-brightness fiber laser sources (IPG/Raycus optional), cutting 1mm stainless steel pipes at 60m/min and 10mm carbon steel pipes at 15m/min. Laser power stability (fluctuation ≤±1%) ensures consistent cutting quality across long production runs.​

Intelligent CNC Control & Programming​

17-inch industrial touchscreen CNC system integrates pipe parameter libraries (80+ materials), automatic nesting, and 3D cutting simulation. Supports DXF/DWG file import and one-click program generation, reducing programming time by 70% and error rates by 90%.​

Stable Pipe Clamping & Feeding​

Multi-point pneumatic/hydraulic clamping system provides adjustable grip force to avoid pipe deformation or slippage. Automatic feeding mechanism accommodates pipes up to 6m in length, with a feeding accuracy of ±0.03mm for continuous batch processing.

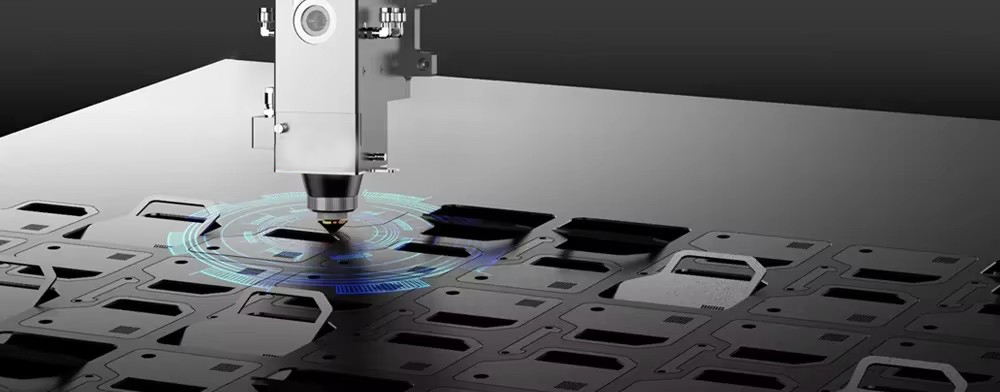

Auto Obstacle-Avoidance Laser Head

Featuring an auto-tracking system, this laser head detects protruding obstacles, significantly lowering damage risks and cutting maintenance costs for laser cutters.

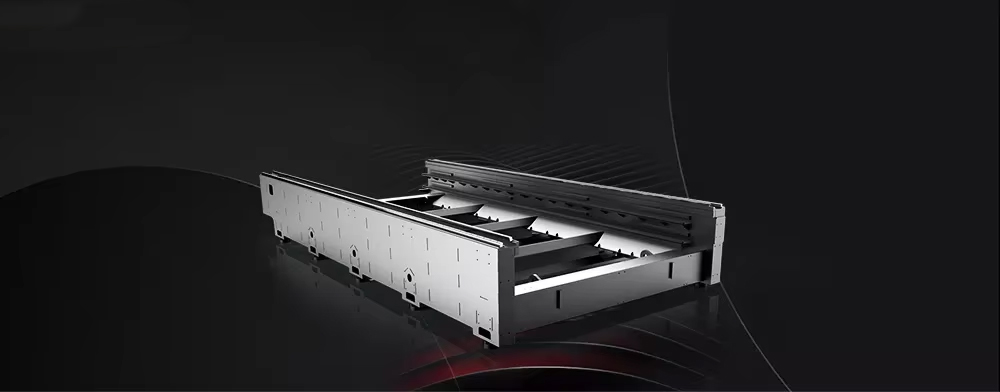

Mortise-and-Tenon Joint Welded Bed

Each frame of the cutting machine tool undergoes mortise-and-tenon joining followed by welding, to achieve perfect mechanical performance as well as better stability and sturdiness.

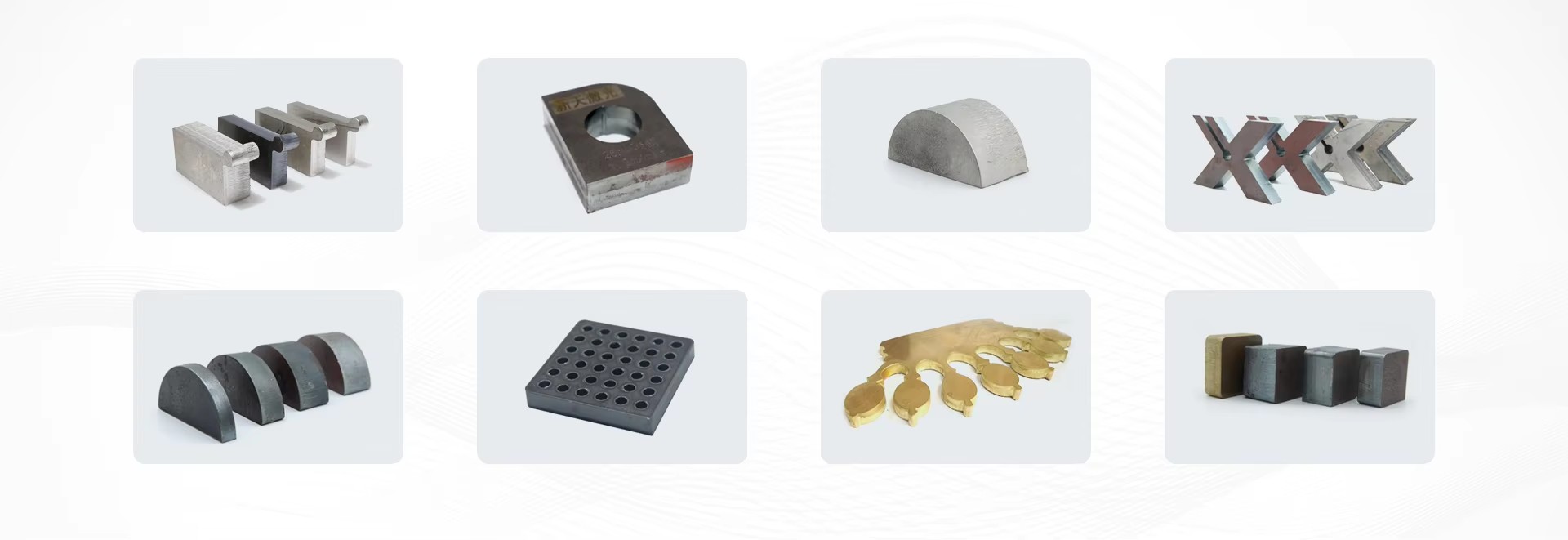

Sample Display

FAQ

How To Use The Machine After Receving The Machine？

Firstly , when you got machine , you need to contact with us ,our engineer will together with your to deal with it ,secondly ,we will send you user manual or videos before you get the machine ,Thirdly Our professional technician online teach you until you can use it well by yourself.

Why Should You Buy From Us Not From Other Suppliers?

We are professional equipment manufacturer, Our service as below: 1. Factory supply directly 2. 12 months warranty for the whole machine 3. Friendly English version manual and operation video 5. Engineer available to service machinery overs.

What Services Can We Provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD,EUR,CNY.

How To Choose A Suitable Machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience. It can be customized according to your requirements.

Do You Have A Setup And Equipment Commissioning Service?

Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug.
