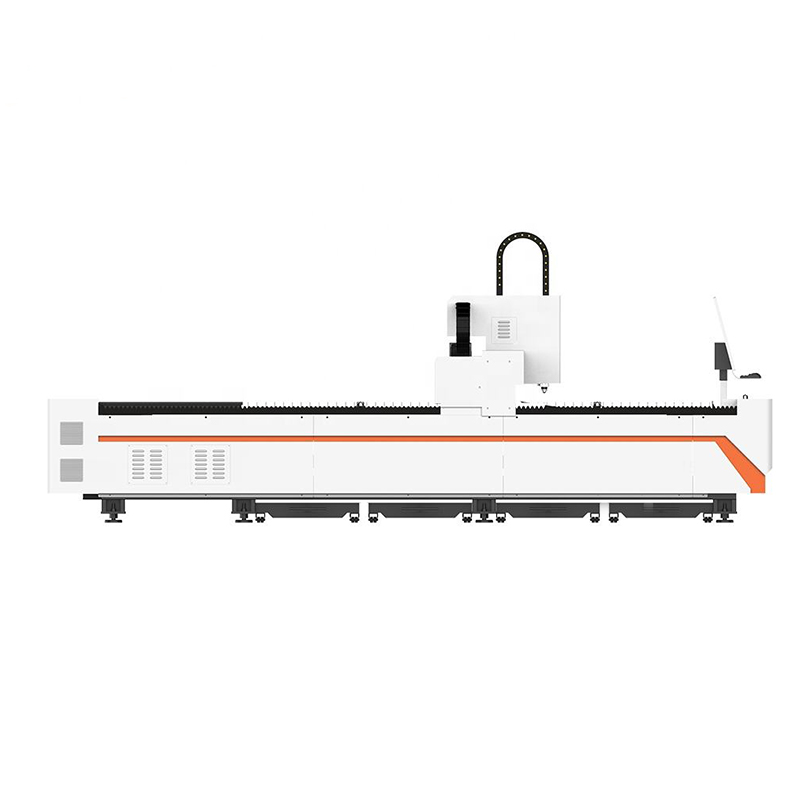

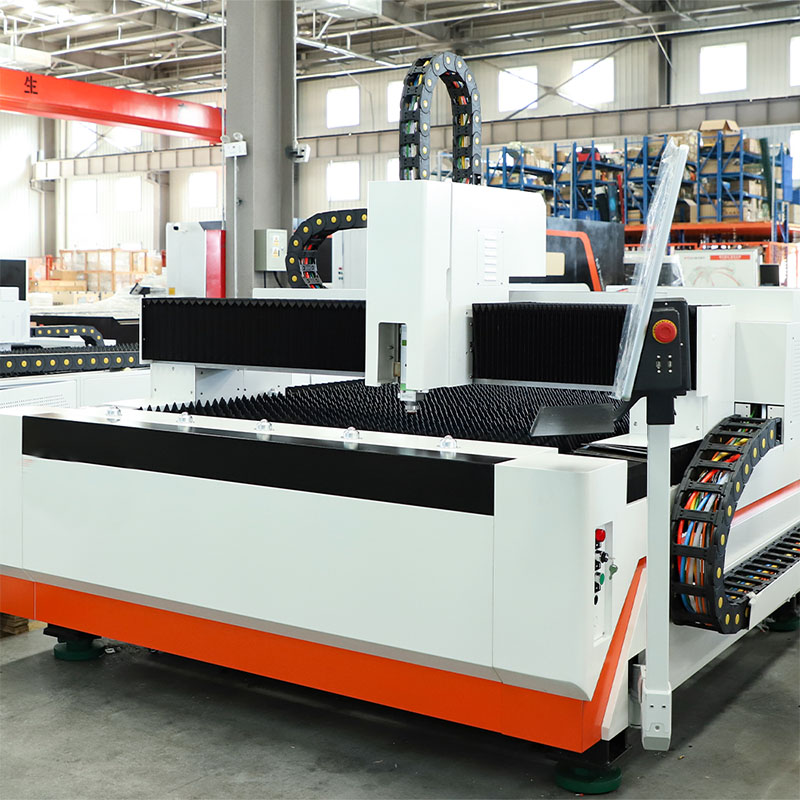

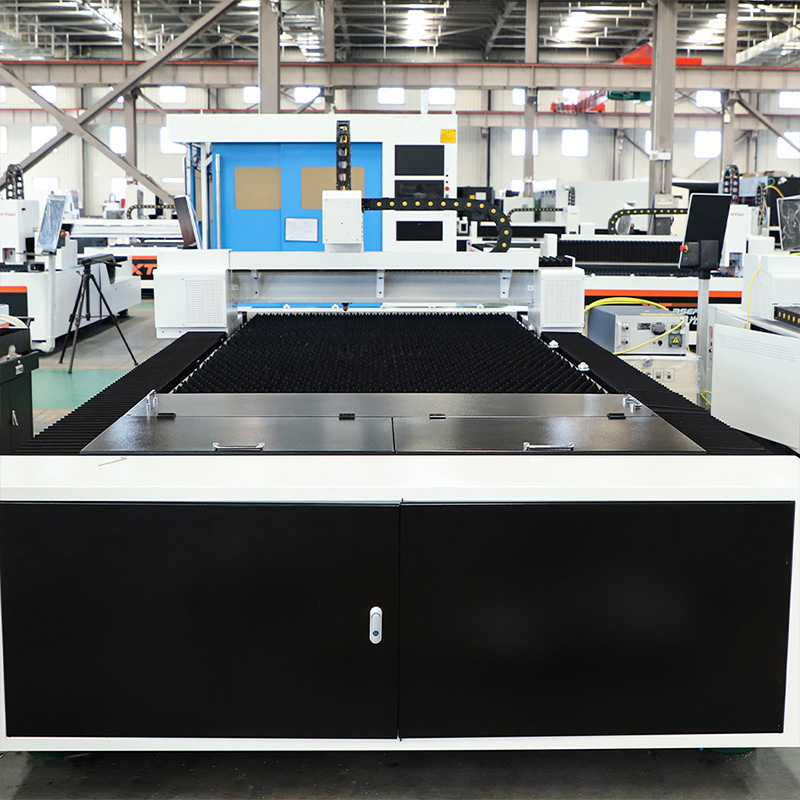

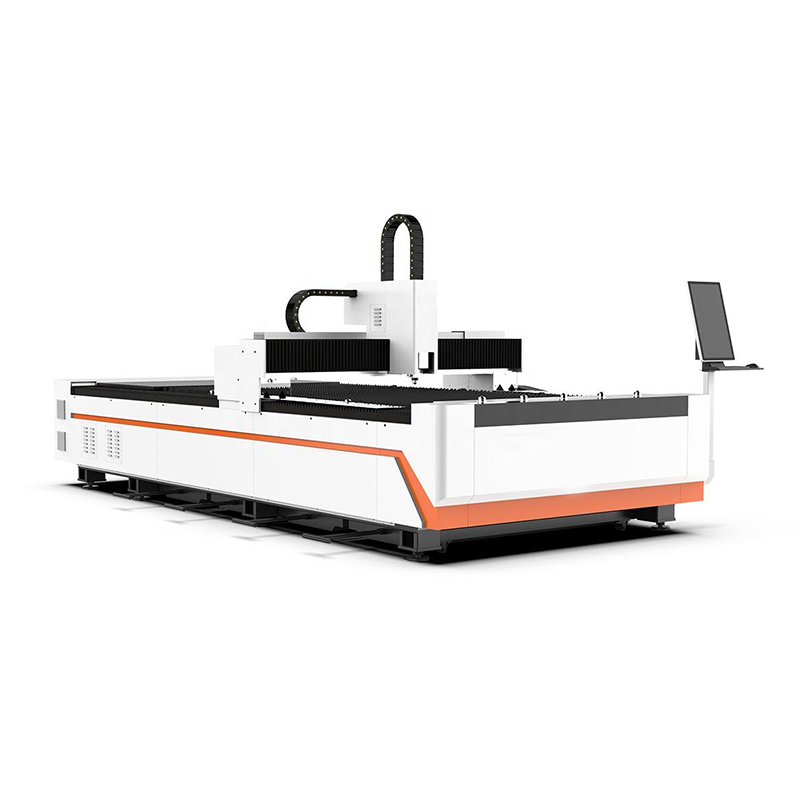

CNC Metal Cutting Machine Small Tubes Pipes Fiber Laser

Core Competence: Specialized for Small-Diameter Tubes

1.Compact Pipe Compatibility: Handles round pipes from φ6mm to φ80mm, square pipes as small as 5×5mm up to 60×60mm, and rectangular pipes from 5×10mm to 50×70mm—covering the full spectrum of small-diameter tubular materials used in precision manufacturing.

2.Thin-Wall Precision: Excels at cutting thin-walled pipes (wall thickness 0.2mm–8mm) for materials including stainless steel, aluminum alloy, brass, copper, and carbon steel. The low-power laser options (500W–1500W) prevent material deformation, ensuring intact structural integrity of delicate small tubes.

3.Miniature Component Versatility: Capable of cutting complex features on small pipes, such as micro-holes (≥φ1mm), narrow slots (width ≥0.5mm), 45°–135° bevels, and custom contours—ideal for parts like medical fittings, electronics enclosures, and precision hardware.

Precision & Stability: Engineered for Tiny Details

1.Micro-Precision Clamping: Adopts a 3-jaw mini pneumatic chuck with soft rubber jaws, providing firm yet gentle grip on small pipes to avoid surface scratches or deformation. The chuck’s centering accuracy of ≤0.01mm ensures consistent alignment for every cut.

2.High-Speed, Low-Drift Motion: Equipped with miniaturized high-precision servo motors and ball screws (lead accuracy C3 class), the machine achieves a positioning accuracy of ±0.015mm/m and repeatability of ±0.008mm. The laser head’s 3-axis lightweight design enables rapid traversal (up to 50m/min) without vibration.

3.Fiber Laser Focus Control: Features an auto-focus laser head with a minimum spot diameter of 0.08mm, ensuring sharp, clean cuts even on the smallest pipe surfaces. The laser source’s stable output (power fluctuation ≤±1%) guarantees uniform edge quality across batches.

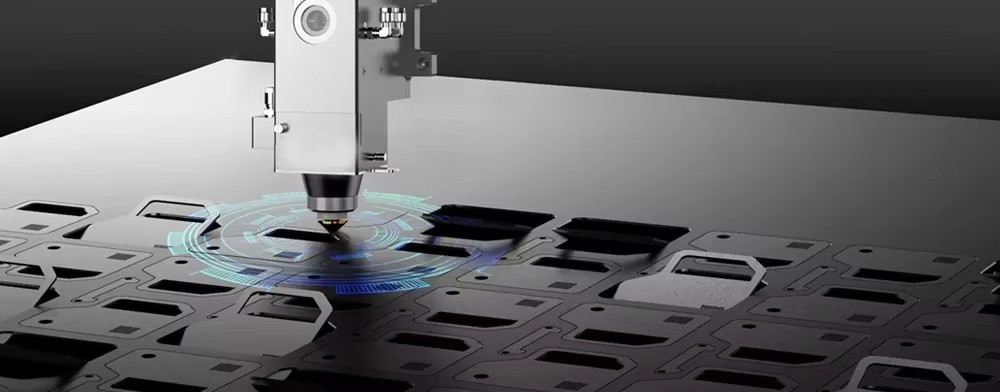

Auto Obstacle-Avoidance Laser Head

Featuring an auto-tracking system, this laser head detects protruding obstacles, significantly lowering damage risks and cutting maintenance costs for laser cutters.

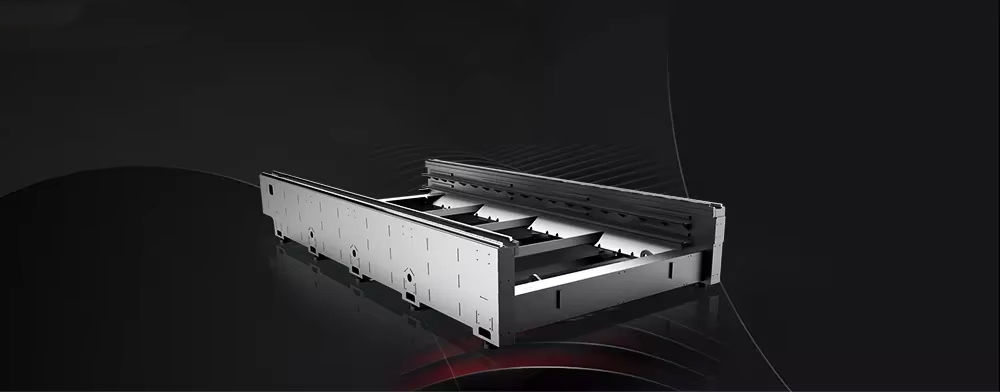

Mortise-and-Tenon Joint Welded Bed

Each frame of the cutting machine tool undergoes mortise-and-tenon joining followed by welding, to achieve perfect mechanical performance as well as better stability and sturdiness.

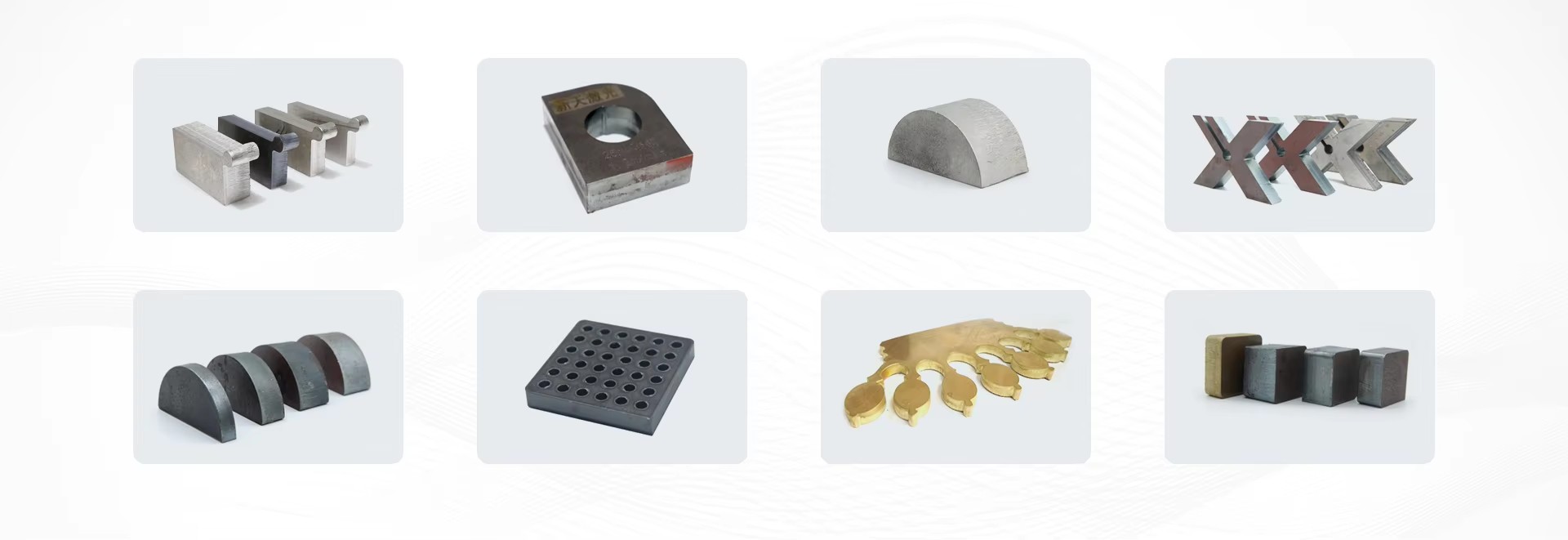

Sample Display

FAQ

How To Use The Machine After Receving The Machine？

Firstly , when you got machine , you need to contact with us ,our engineer will together with your to deal with it ,secondly ,we will send you user manual or videos before you get the machine ,Thirdly Our professional technician online teach you until you can use it well by yourself.

Why Should You Buy From Us Not From Other Suppliers?

We are professional equipment manufacturer, Our service as below: 1. Factory supply directly 2. 12 months warranty for the whole machine 3. Friendly English version manual and operation video 5. Engineer available to service machinery overs.

What Services Can We Provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD,EUR,CNY.

How To Choose A Suitable Machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience. It can be customized according to your requirements.

Do You Have A Setup And Equipment Commissioning Service?

Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug.
