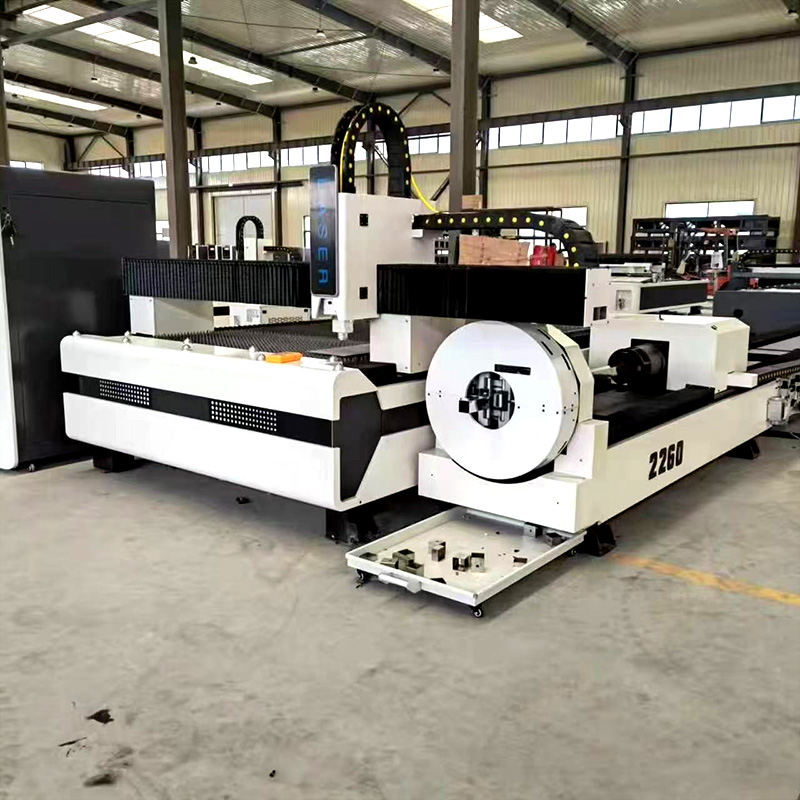

Plate cutting machine with rotary part

Dual-Function Integration: Plate + Tube Processing in One​

Eliminates the need for separate cutting equipment by combining flat plate and tubular component processing. The integrated rotary part seamlessly switches between plate cutting (supports 1220×2440mm–2000×6000mm sheets) and tube cutting (handles φ15–160mm round pipes, 15×15–120×120mm square pipes), reducing workshop space occupation by 40% and production transfer time by 60%.

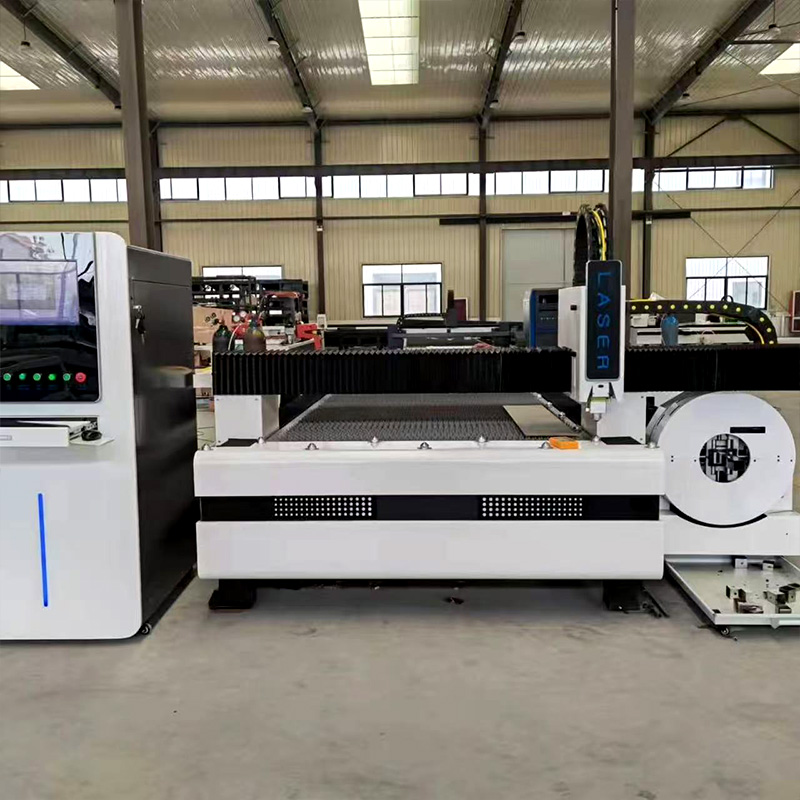

High-Precision Rotary Axis for Complex Tube Cuts​

Equipped with a servo-driven rotary axis and 3-jaw pneumatic chuck, delivering ±0.01° rotation accuracy and 60rpm maximum rotation speed. Enables 0–45° bevel cuts, micro-slotting (width ≥0.5mm), and 3D contour cutting on tubes (wall thickness up to 12mm for carbon steel), with edge roughness Ra ≤1.2μm—no secondary finishing required.

Rapid & Seamless Mode Switching​

Features a retractable rotary part design that folds to the table side when unused, avoiding interference with plate processing. Mode conversion takes less than 5 minutes via the CNC system, ensuring continuous production flow and maximizing machine utilization rate (up to 90% daily).

Robust Structure for Stable Dual-Scenario Performance​

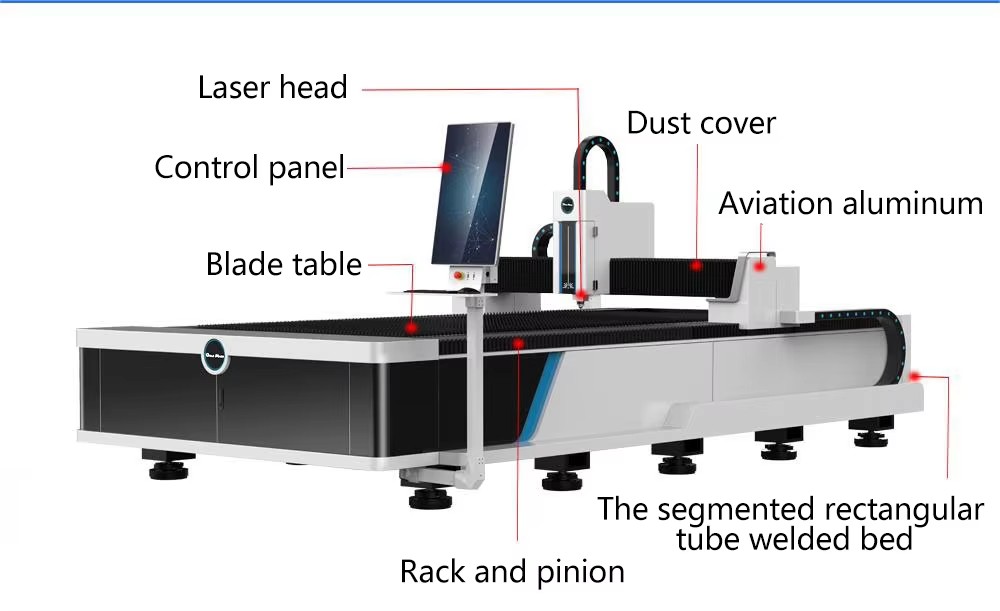

One-piece welded machine bed undergoes vibration aging treatment to eliminate internal stress, supporting both heavy plate cutting (up to 20mm carbon steel) and high-speed tube rotation without deformation. X/Y axes adopt dual-motor rack-and-pinion drives (positioning accuracy ±0.02mm/m) for consistent plate cutting precision.

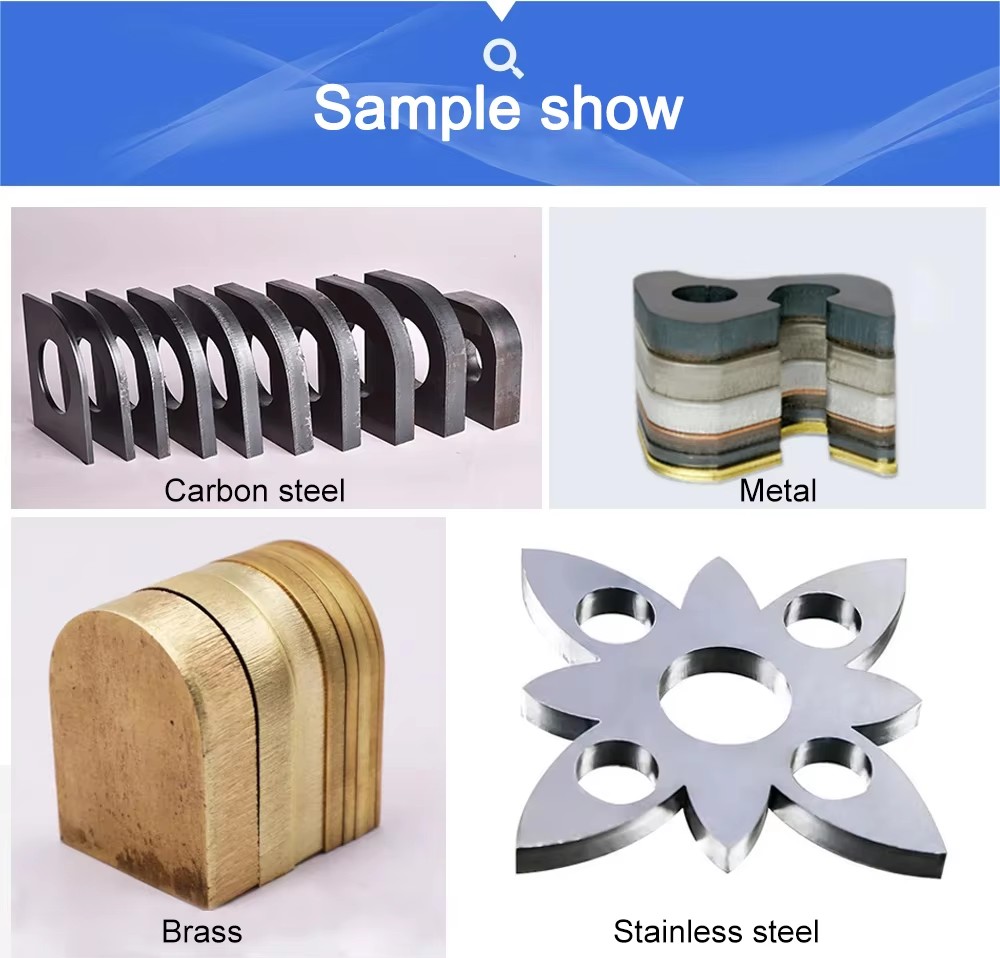

Sample Display

FAQ

How To Use The Machine After Receving The Machine？

Firstly , when you got machine , you need to contact with us ,our engineer will together with your to deal with it ,secondly ,we will send you user manual or videos before you get the machine ,Thirdly Our professional technician online teach you until you can use it well by yourself.

Why Should You Buy From Us Not From Other Suppliers?

We are professional equipment manufacturer, Our service as below: 1. Factory supply directly 2. 12 months warranty for the whole machine 3. Friendly English version manual and operation video 5. Engineer available to service machinery overs.

What Services Can We Provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD,EUR,CNY.

How To Choose A Suitable Machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience. It can be customized according to your requirements.

Do You Have A Setup And Equipment Commissioning Service?

Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug.
