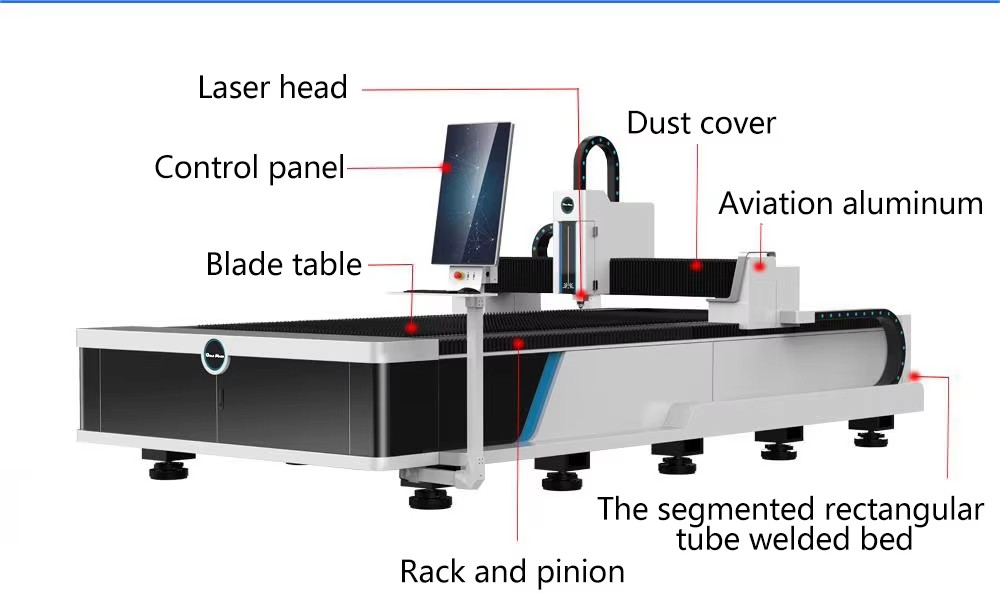

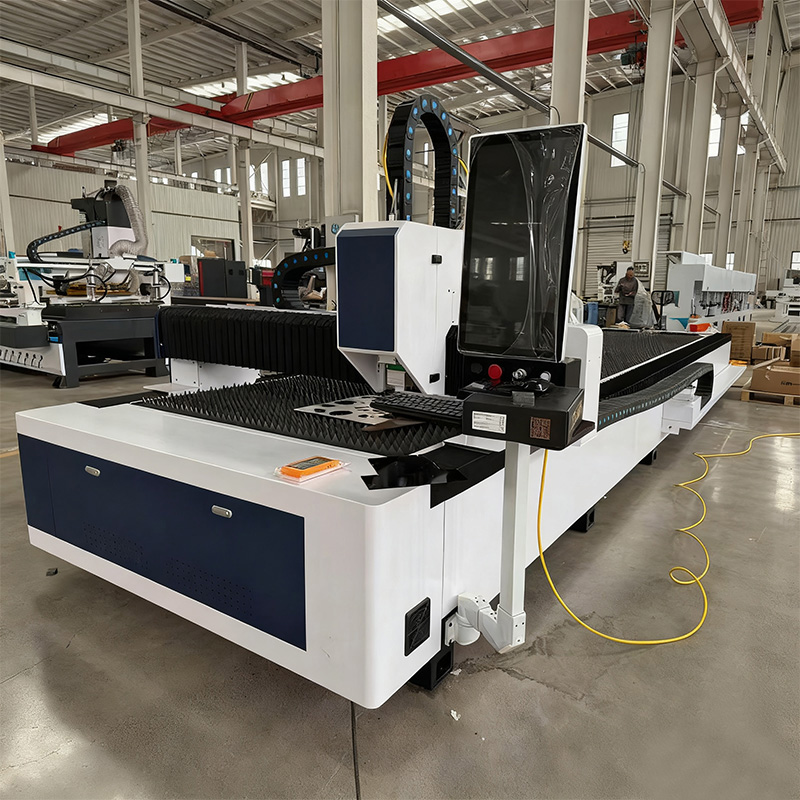

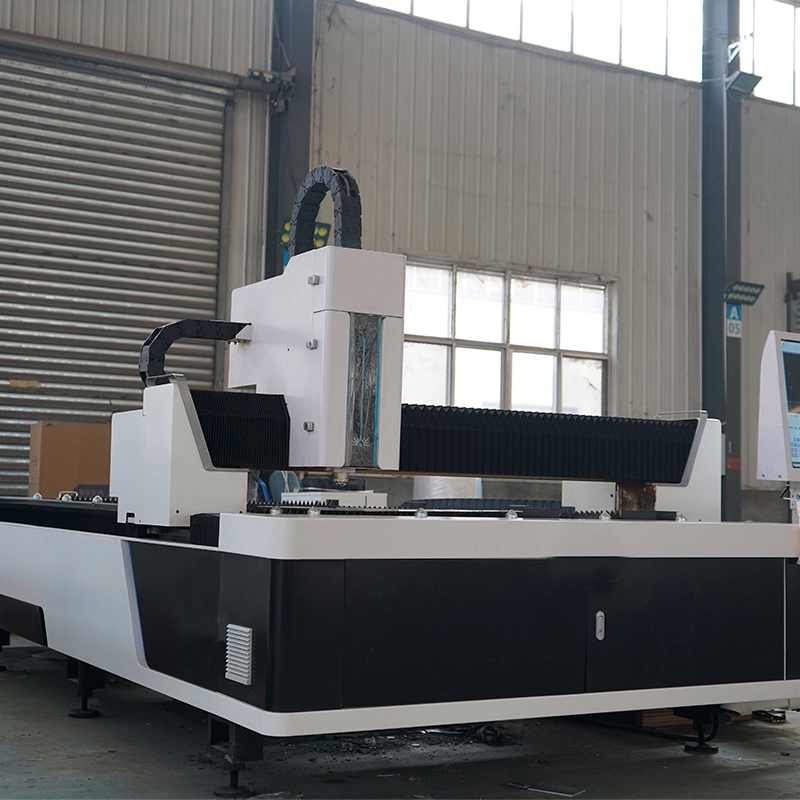

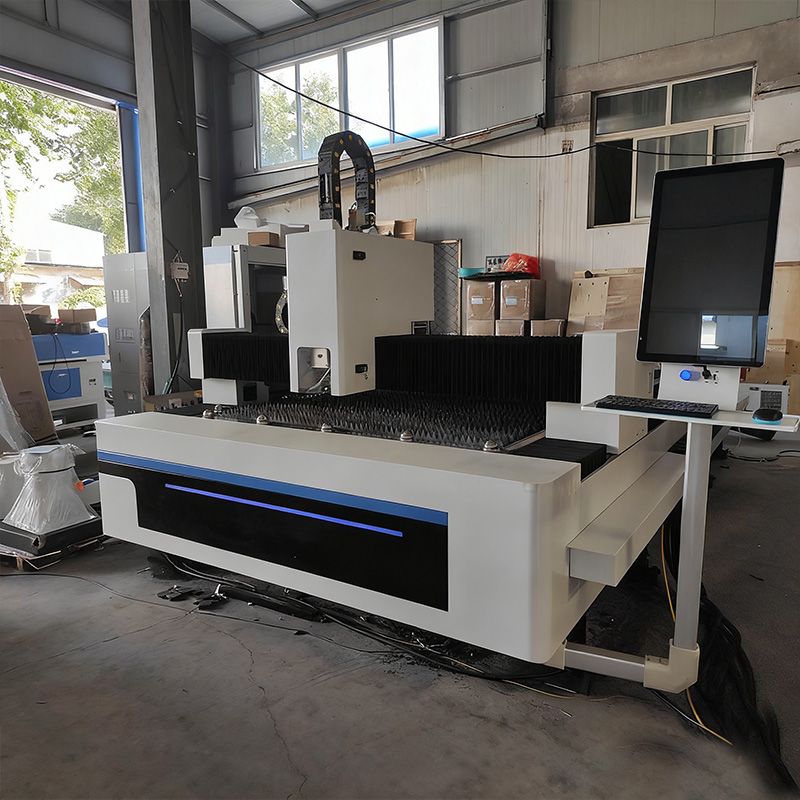

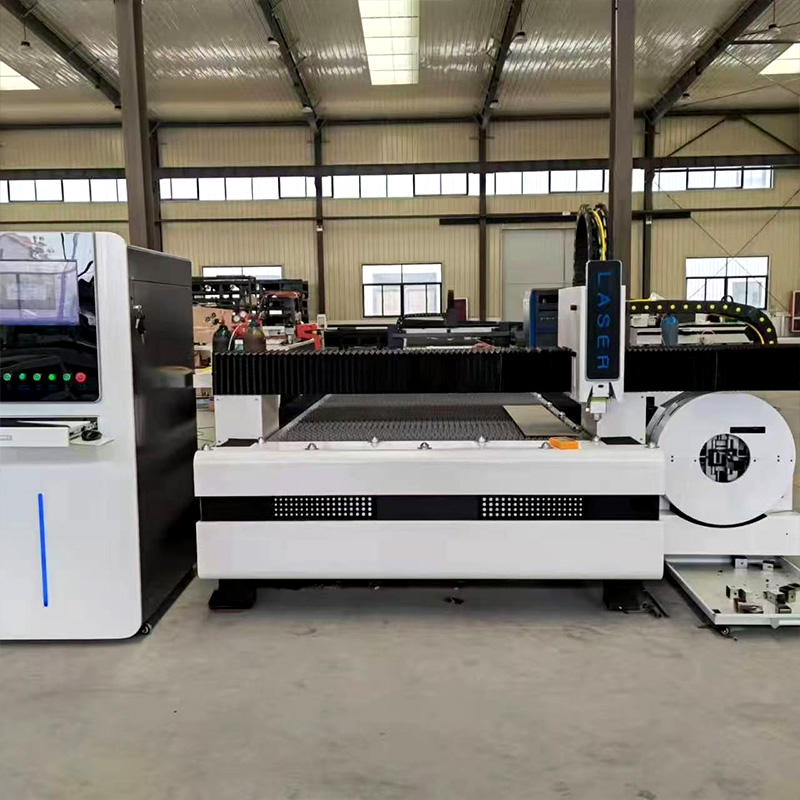

CNC Plate Cutting Machine with Pipe Rotary

Dual-Process Integration: Plate & Pipe in One System​

Combines flat plate cutting and pipe processing into a single CNC solution, eliminating the need for separate equipment. Handles plates up to 2000×6000mm (thickness 0.5–25mm for carbon steel) and pipes (φ20–180mm round, 15×15–150×150mm square) with wall thickness 0.8–15mm, reducing workshop footprint by 45% and cross-equipment transfer time by 70%.

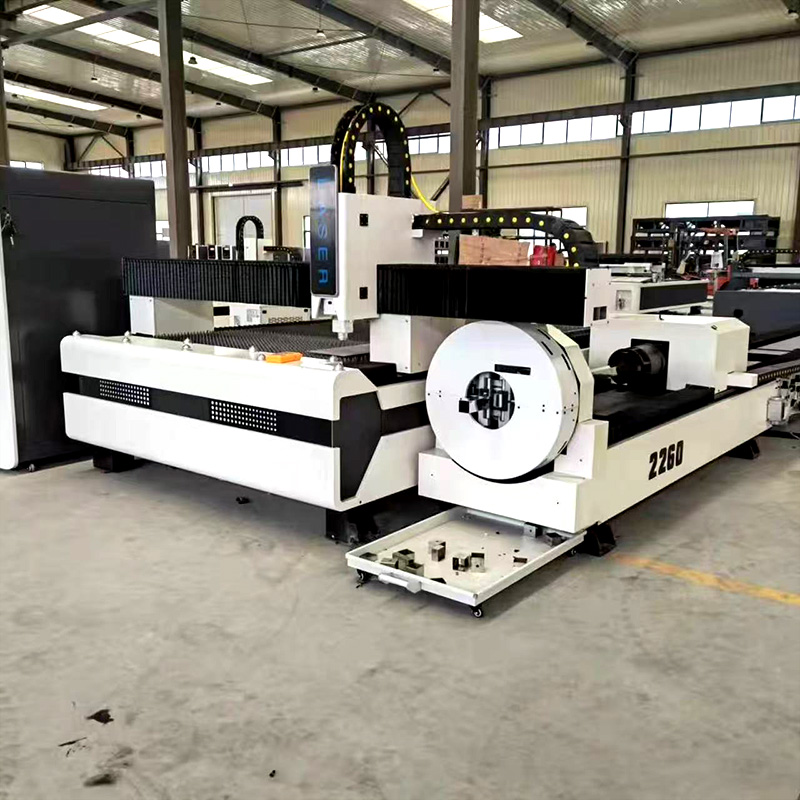

High-Torque Pipe Rotary Unit​

Equipped with a servo-driven pipe rotary axis and 4-jaw hydraulic chuck, delivering torque up to 500N·m for stable rotation of thick-walled pipes. Rotation accuracy reaches ±0.01°, supporting 0–60° bevel cuts, spiral slotting, and complex 3D contour cutting—ideal for pipe fittings and structural connectors.

Synchronized Dual-Precision Drive​

X/Y axes for plate cutting adopt dual-motor rack-and-pinion drives (positioning accuracy ±0.02mm/m) to ensure smooth motion across large plates. The pipe rotary axis integrates a harmonic reducer, achieving repeatability of ±0.008° for consistent cut quality on both plates and pipes.

One-Click Process Switching​

Intelligent CNC system enables seamless transition between plate and pipe modes in under 3 minutes. The pipe rotary unit retracts automatically when idle, with a built-in collision avoidance sensor to protect the laser head and workpieces during plate processing.

Application Scenarios: Covering Cutting Needs of Multiple Industries

Whether it is the cutting of precision titanium alloy parts in the aerospace field, the blanking of stainless steel plates in automotive manufacturing, the engraving of acrylic letter molds in the advertising industry, or the micro-hole cutting of PCB boards in the electronics industry, this laser cutting machine can easily handle it. For thin plate cutting, its advantages of high speed and high efficiency can realize mass production; for thick plate cutting, its stable power output can ensure the quality of the cutting edge, truly achieving "both thin and thick plate cutting". Currently, the equipment has been widely used in more than 20 industries such as mechanical processing, hardware manufacturing, and home decoration, and has become the first choice for many enterprises to upgrade their cutting processes.

FAQ

How To Use The Machine After Receving The Machine？

Firstly , when you got machine , you need to contact with us ,our engineer will together with your to deal with it ,secondly ,we will send you user manual or videos before you get the machine ,Thirdly Our professional technician online teach you until you can use it well by yourself.

Why Should You Buy From Us Not From Other Suppliers?

We are professional equipment manufacturer, Our service as below: 1. Factory supply directly 2. 12 months warranty for the whole machine 3. Friendly English version manual and operation video 5. Engineer available to service machinery overs.

What Services Can We Provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD,EUR,CNY.

How To Choose A Suitable Machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience. It can be customized according to your requirements.

Do You Have A Setup And Equipment Commissioning Service?

Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug.
