High-speed exchange table cutting machine for metal fabrication

Ultra-Fast Table Exchange for Uninterrupted Production​

Dual servo-driven exchange tables achieve switching in 8–12 seconds (30% faster than industry averages), enabling simultaneous cutting on one table and loading/unloading on the other. Eliminates batch-to-batch downtime, boosting metal fabrication throughput by 70% vs. single-table models.​

Heavy-Duty Table Design for Versatile Metal Sheets​

Each table (available in 1530/2040/3015 sizes) supports loads up to 2000kg, handling metal sheets from 0.5mm thin-gauge aluminum to 35mm thick carbon steel. Wear-resistant manganese steel table tops with T-slot grids prevent sheet slippage and resist cutting spatter damage.​

High-Precision Synchronous Drive System​

X/Y axes feature dual-motor rack-and-pinion drives (imported from Yaskawa/Siemens) with electronic cam synchronization, delivering positioning accuracy of ±0.015mm/m and repeatability of ±0.008mm. Exchange table linear guides (THK HIWIN) ensure table alignment error ≤0.02mm, guaranteeing consistent cuts across both tables.​

High-Brightness Fiber Laser for Fast Metal Cutting​

Equipped with 1500W–15000W fiber laser sources (IPG/Raycus/Lumentum options), cutting 1mm stainless steel at 180m/min and 10mm carbon steel at 25m/min. Laser power stability (fluctuation ≤±0.5%) produces burr-free edges (Ra ≤0.8μm) on metals like stainless steel, aluminum, brass, and titanium.​

Intelligent Exchange & Cutting Control​

19-inch industrial touchscreen CNC system integrates auto-nesting (material utilization up to 97%) and table exchange logic. Supports pre-set cutting sequences, real-time table position monitoring, and collision avoidance sensors—reducing operator intervention by 80% and error rates by 95%.

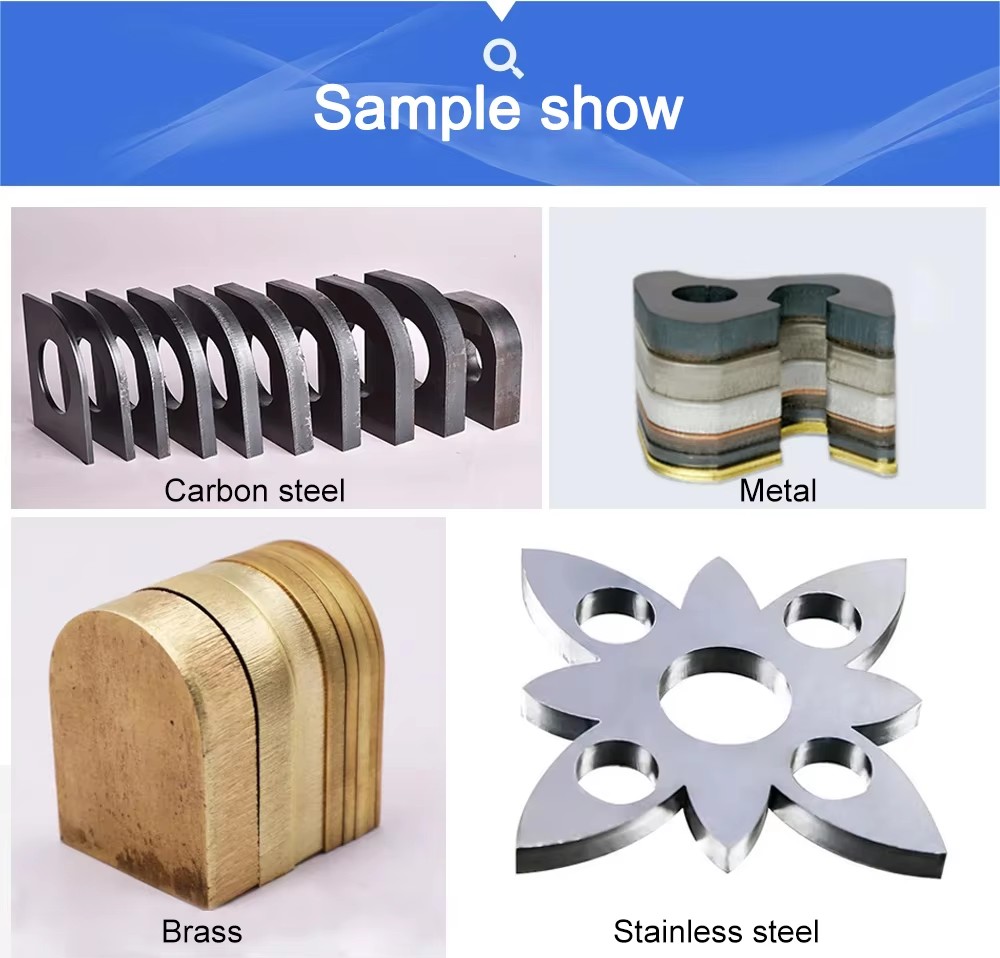

Sample Display

FAQ

How To Use The Machine After Receving The Machine？

Firstly , when you got machine , you need to contact with us ,our engineer will together with your to deal with it ,secondly ,we will send you user manual or videos before you get the machine ,Thirdly Our professional technician online teach you until you can use it well by yourself.

Why Should You Buy From Us Not From Other Suppliers?

We are professional equipment manufacturer, Our service as below: 1. Factory supply directly 2. 12 months warranty for the whole machine 3. Friendly English version manual and operation video 5. Engineer available to service machinery overs.

What Services Can We Provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD,EUR,CNY.

How To Choose A Suitable Machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience. It can be customized according to your requirements.

Do You Have A Setup And Equipment Commissioning Service?

Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug.
