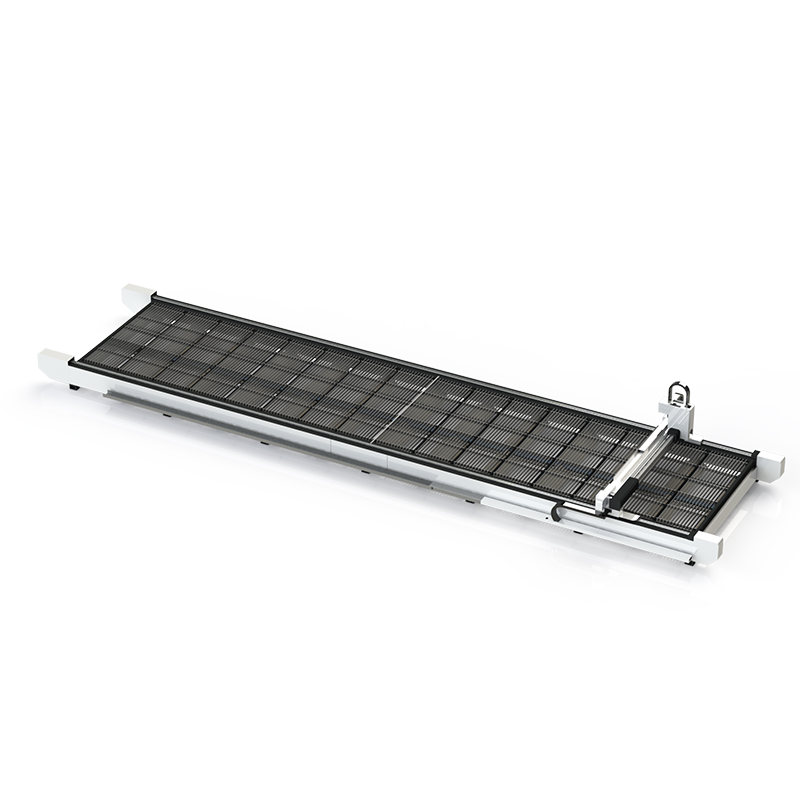

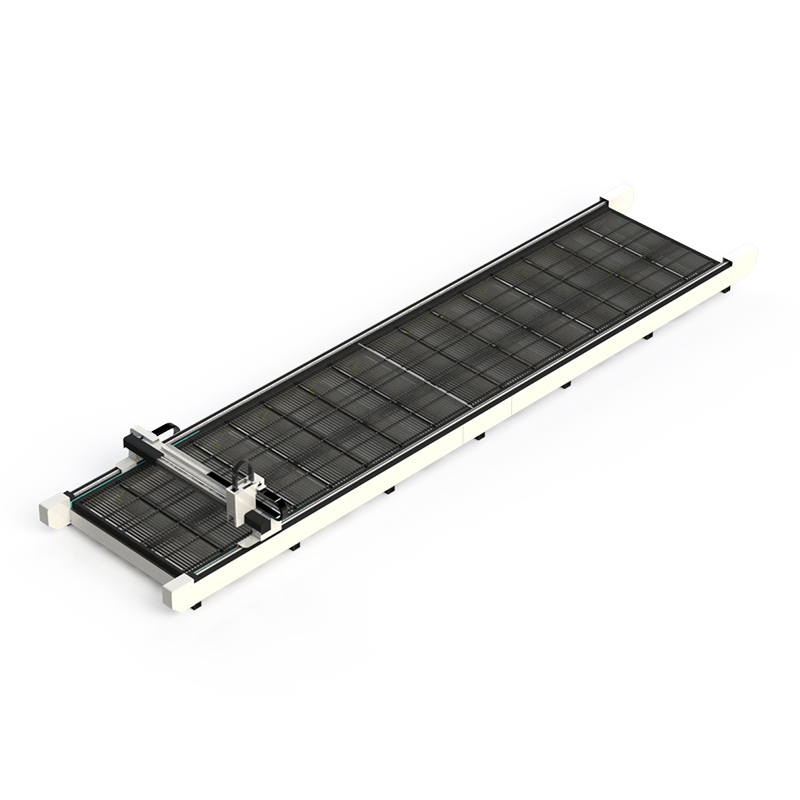

Big size and power laser cutting machine
The bed adopts the overall welding structure, rough machining after annealing, and then vibration aging treatment, which can completely eliminate the stress of welding and processing, with good rigidity, high precision, no deformation during long-term use, and greatly improve the response speed and stability of the bed during movement.
Brand：Gain
Product origin：Weifang,Shandong,China
Delivery time：7-30 days
Supply capacity：500 units/year
Send Inquiry
Product Description
Product features:
1. The machine adopts gantry double drive structure, imported high-precision gear rack and linear guide rail, with stable transmission, high speed and high precision.
2. The bed adopts the overall welding structure, rough machining after annealing, and then vibration aging treatment, which can completely eliminate the stress of welding and processing, with good rigidity, high precision, no deformation during long-term use, and greatly improve the response speed and stability of the bed during movement.
3. Famous ervo motors are used for X, Y and Z axes, with high precision, high speed, large torque, large inertia, stable and durable performance. It ensures the high speed and acceleration of the whole machine.

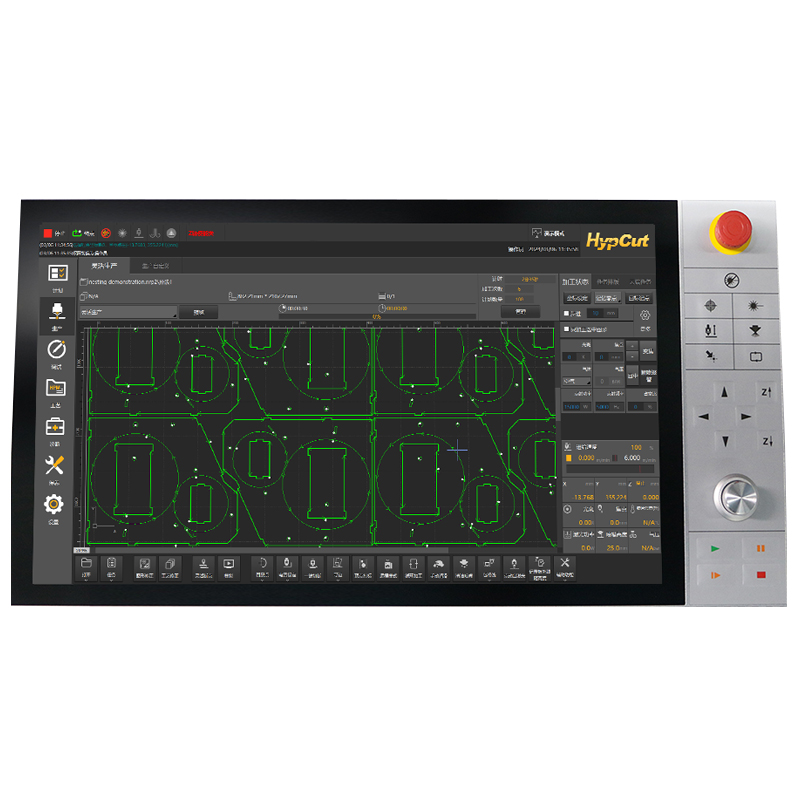

4. The special CNC system for optical fiber laser cutting machine based on operating system is adopted, which integrates many special function modules for laser cutting control, with powerful function, good man-machine interface and simple operation.

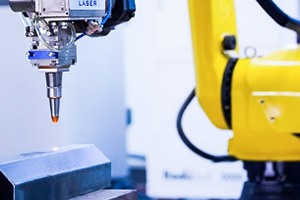

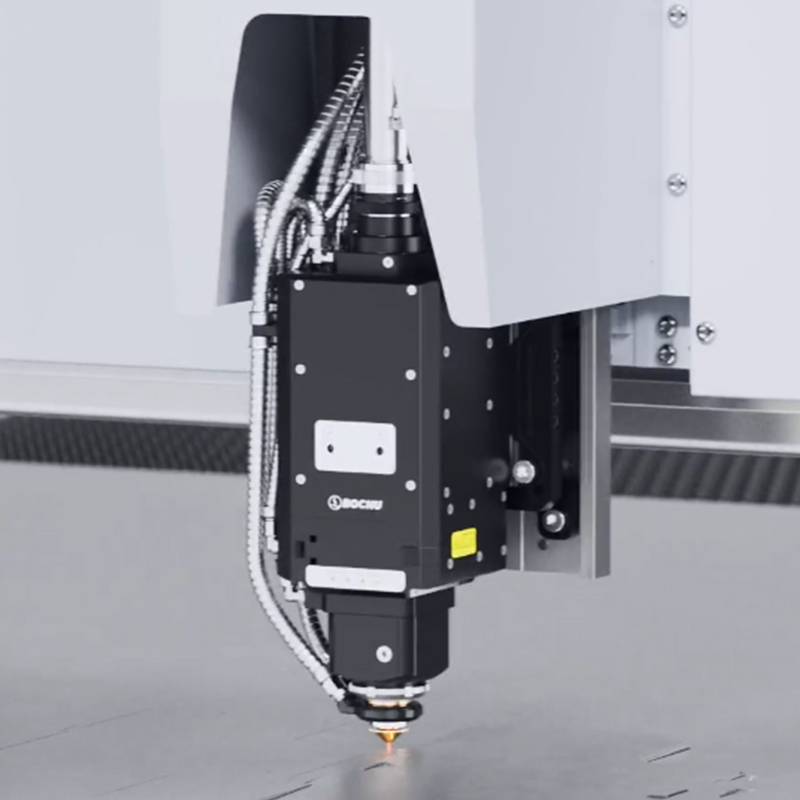

5. The cutting head adopts famous cutting head, special cutting head for optical fiber laser and capacitive sensing, with high induction precision, sensitive response and the most stable and reliable performance.
6. Imported high-precision electronic control proportional valve to accurately control the air pressure of cutting auxiliary gas, so as to achieve the best cutting effect.
Technical parameters
| Z axis stroke | 150mm |
| X/Y positioning precision | ±0.02mm/m |
| X/Y Repeat positioning precision | ±0.02mm |
| Max. operation speed | 120m/min |
| Max. acceleration | 1.2G |
| Working voltage | 380V50HZ |
| Notch width | 0.1-0.5mm |
| Notch roughness | Ra3.2 |
| Operation temp. of machine tool | 0℃-40℃ |
| Operation humidity of machine tool | ＜90% |
| Total power protection level | IP54 |
| Normal model | 6525/8025/12025/13030/14032 |

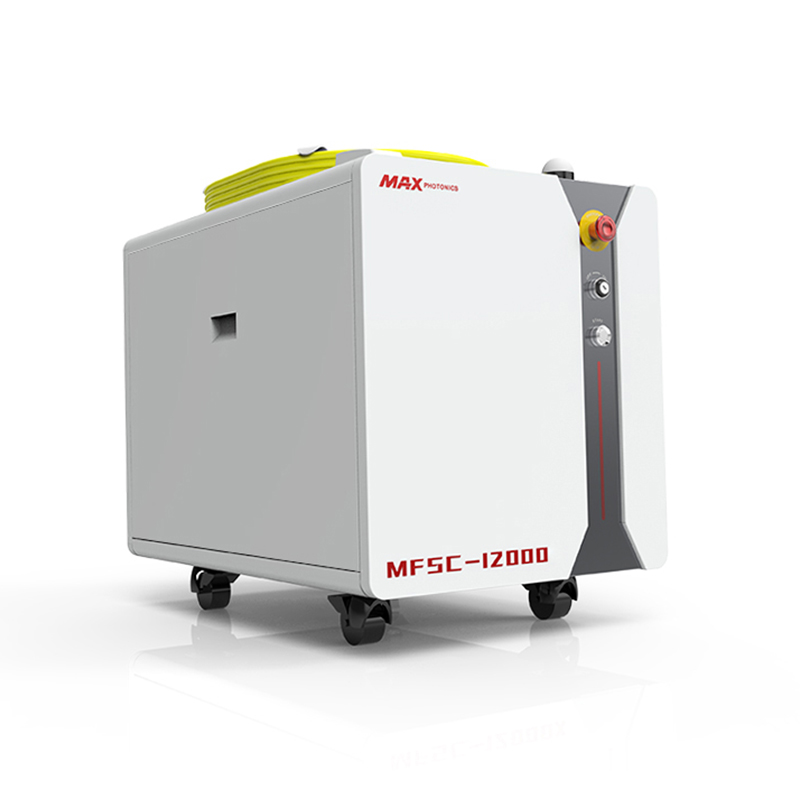

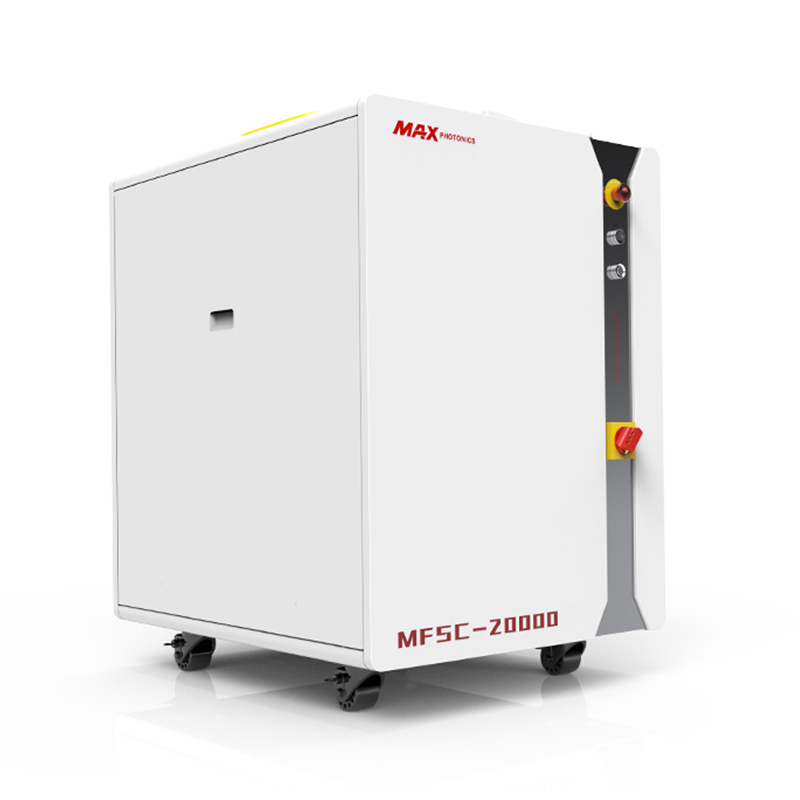

| Laser power | 6000W/12000W/20000W/30000W |
Applicable materials and industry applications
Application industries: metal cutting, electrical switch manufacturing, elevator manufacturing, household appliances manufacturing, kitchenware manufacturing, tool processing, and other machinery manufacturing and processing industries.
Applicable materials: it is specialized in cutting a variety of thin metal plates. It can cut carbon steel plate and stainless steel plate with high quality. It can also cut aluminum alloy plate, galvanized plate, electrolytic plate, silicon steel, titanium alloy, aluminized zinc plate, thin brass plate and other metal materials.
FAQ
How To Use The Machine After Receving The Machine？
Firstly , when you got machine , you need to contact with us ,our engineer will together with your to deal with it ,secondly ,we will send you user manual or videos before you get the machine ,Thirdly Our professional technician online teach you until you can use it well by yourself.
Why Should You Buy From Us Not From Other Suppliers?
We are professional equipment manufacturer, Our service as below: 1. Factory supply directly 2. 12 months warranty for the whole machine 3. Friendly English version manual and operation video 5. Engineer available to service machinery overs.
What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD,EUR,CNY
How To Choose A Suitable Machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience. It can be customized according to your requirements.
Do You Have A Setup And Equipment Commissioning Service?
Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug.
