Product Description

Overview

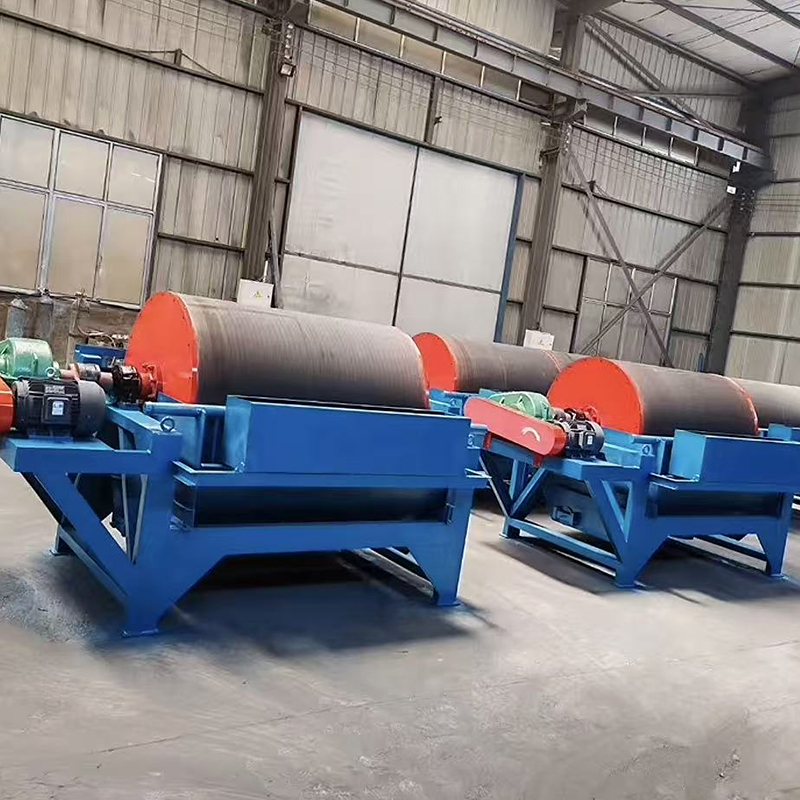

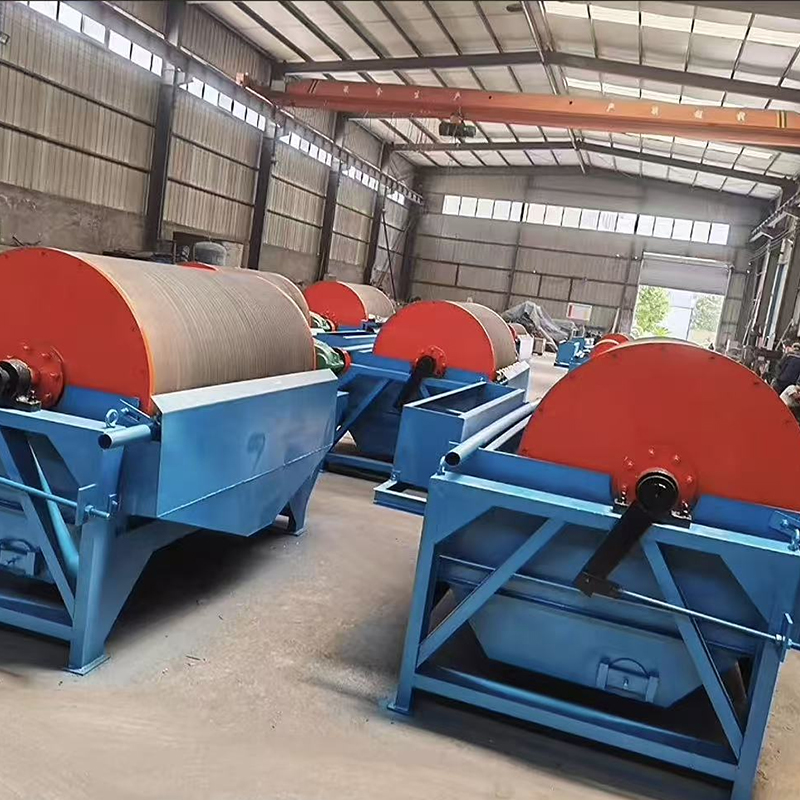

The permanent magnet drum magnetic separator is suitable for enterprises, institutions, and individual users in metallurgy, mining, mineral processing, and beneficiation plants. It is used to separate fine magnetic minerals or remove magnetic minerals mixed in non-magnetic minerals. The surface magnetic field strength of the selection tube of the permanent magnet drum magnetic separator is much higher than that of the ordinary permanent magnet magnetic separator, which is easy to operate, manage and maintain. It has obvious energy-saving and energy-saving performance when used in various beneficiation plants. The magnetic separation cylinder of this permanent magnet drum magnetic separator can be equipped with three types of slots, namely semi countercurrent slot (CTB), countercurrent slot (CTS), and countercurrent slot (CTN), to meet different selection requirements. The semi counter current slot permanent magnet drum magnetic separator is suitable for coarse and fine selection of ore particles with a particle size of 0.5-0mm, especially for fine selection of minerals with a particle size of 0.15-0.0mm; The downstream slot permanent magnet drum magnetic separator is suitable for coarse and fine selection of ore particles with a size of 6-0mm; The countercurrent slot permanent magnet drum magnetic separator is suitable for coarse and sweep selection of ore particles with a particle size of 0.6-0.0mm, as well as heavy medium recovery in coal preparation industry. The permanent magnet drum magnetic separator adopts professional computer software optimization design, with a reasonable structure, simple installation, convenient use, and high selection efficiency! Improve the economic efficiency of the beneficiation plant!

Technical parameter

Parameter/ Model	Drum size (drum × length) mm	Drum surface magnetic induction intensity mT			Handling capacity		Electric motor power kw	Rotating speed of the drum r/min	Machine weight kg
Parameter/ Model	Drum size (drum × length) mm	Geometric central value of magnetic pole	Average value of scavenging area	The highest magnetic induction intensity	1/h	m³/h	Electric motor power kw	Rotating speed of the drum r/min	Machine weight kg
CTS(N.B)-46	400×600	-	130	160	1-30	5	1.1	45	600
CTS(N.B)-66	600×600	-	145	170	5-10	16	1.1	40	750
CTS(N.B)-69	600×900	-	145	170	8-15	24	1.1	40	830
CTS(N.B)-612	600×1200	-	145	170	10-20	32	2.2	40	990
CTS(N.B)-618	600×1800	-	145	170	15-30	48	2.2	40	1330
CTS(N.B)-712	750×1200	120	155	180	15-30	48	3	35	1500
CTS(N.B)-718	750×1800	120	155	180	20-45	72	3	35	2100
CTS(N.B)-918	900×1800	148	165	190	25-55	90	4	28	2900
CTS(N.B)-924	900×2400	148	165	190	35-70	110	4	28	3500
CTS(N.B)-1018	1050×1800	148	165	190	40-75	120	5.5	22	4000
CTS(N.B)-1021	1050×2100	148	165	190	45-88	140	5.5	22	4500
CTS(N.B)-1021	1050×2100	160	240	280	45-88	140	5.5	22	4500
CTS(N.B)-1024	1050×2400	148	165	190	52-100	160	5.5	22	5000
CTS(N.B)-1024	1050×2400	160	240	280	52-100	160	5.5	22	5000
CTS(N.B)-1030	1050×3000	160	240	280	65-125	200	7.5	22	6200
CTS(N.B)-1218	1200×1800	148	165	190	47-90	140	5.5	19	5800
CTS(N.B)-1218	1200×1800	160	240	280	47-90	140	5.5	19	5800
CTS(N.B)-1224	1200×2400	148	165	190	82-120	192	7.5	19	6200
CTS(N.B)-1224	1200×2400	160	240	300	82-120	192	7.5	19	6200
CTS(N.B)-1230	1200×3000	148	165	190	80-150	240	7.5	19	7200
CTS(N.B)-1230	1200×3000	160	240	280	80-150	240	7.5	19	7200
CTS(N.B)-1530	1500×3000	180	240	300	90-170	270	11	14	8100
CTS(N.B)-1540	1500×4000	180	240	300	115-220	350	11	14	9300
