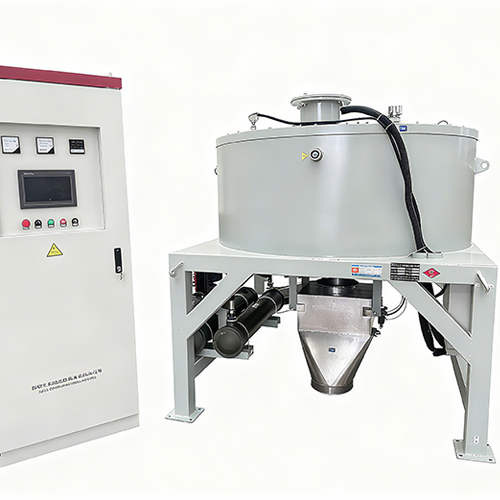

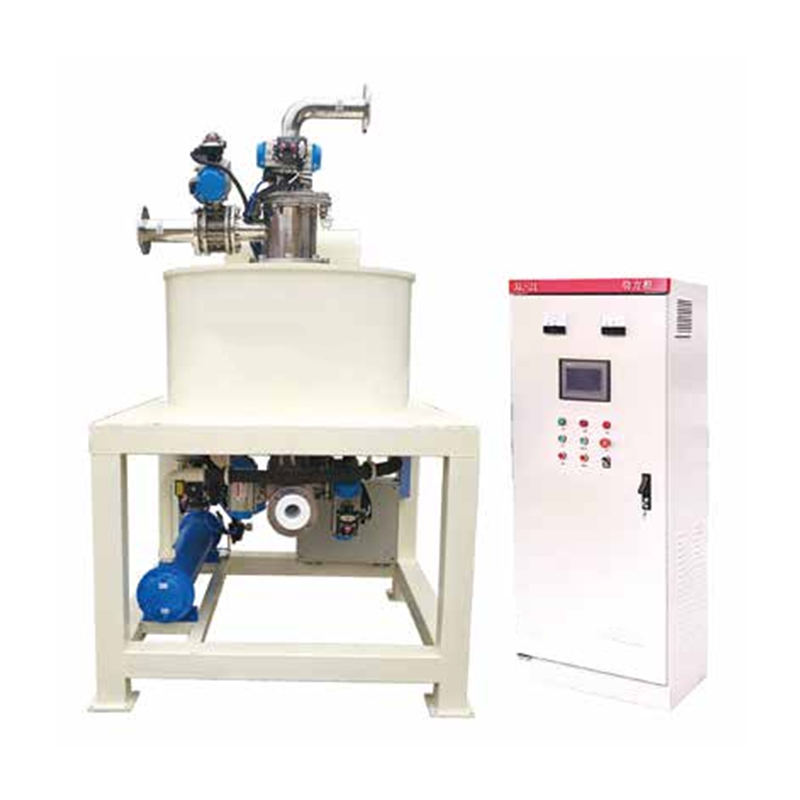

Electromagnetic Slurry Iron Separator
YSDCS series of Wet electromagnetic slurry iron remover. was the best equipment in wet-processing ironseparators for powder in China at present. the machine design was unique .its magnetic intensity reached 1800Gs. with strongsuction force and strong capturing power.
Send Inquiry
Product Description
Parameter
| Model No | Magnetic induction(Gauss) | Input voltage | Excitation power (kw) | Production capacity(t/h) | Adapt material | Mainframe weight (kg) |
| YSDC-16 | 16000 |
AC380V50Hz Three phase and Four wire |
≤3.9 | 1-2 |
a.200 mesh to a fine dry powder or particles b.nonmagnetc material c.≤ 30% d.iron content lower than 1% |
750 |
| YSDC-16-T1 | 17000 | ≤5.3 | 1-2 | 850 | ||
| YSDC-16-T2 | 18000 | ≤6.8 | 1-2 | 960 | ||
| YSDC-20 | 16000 | ≤6.2 | 2-5 | 970 | ||
| YSDC-20-T1 | 17000 | ≤6.8 | 2-5 | 1010 | ||
| YSDC-20-T2 | 18000 | ≤7.8 | 2-5 | 1230 | ||
| YSDC-25 | 16000 | ≤7.0 | 4-8 | 1250 | ||
| YSDC-25-T1 | 17000 | ≤8.1 | 4-8 | 1450 | ||
| YSDC-25-T2 | 18000 | ≤9.5 | 4-8 | 1660 | ||
| YSDC-30 | 16000 | ≤8.5 | 8-15 | 1620 | ||
| YSDC-30-T1 | 17000 | ≤10.0 | 8-15 | 1810 | ||
| YSDC-30-T2 | 18000 | ≤12.0 | 8-15 | 2040 | ||
| YSDC-35 | 16000 | ≤10.5 | 10-20 | 2050 | ||
| YSDC-35-T1 | 17000 | ≤12.5 | 10-20 | 2280 | ||
| YSDC-35-T2 | 18000 | ≤15.6 | 10-20 | 2530 | ||
| YSDC-40 | 16000 | ≤12.5 | 15-30 | 2530 | ||
| YSDC-40-T1 | 17000 | ≤15.6 | 15-30 | 2780 | ||
| YSDC-40-T2 | 18000 | ≤19.6 | 15-30 | 3080 |
Overview:
YSDCS series of Wet electromagnetic slurry iron remover. was the best equipment in wet-processing ironseparators for powder in China at present. the machine design was unique .its magnetic intensity reached 1800Gs. with strongsuction force and strong capturing power. it could remove not only most of mechanical iron generated during powderprocessing. but also most of feric oxide(Fe2O3) and other weak magnetic impurities in minerals/ore powder. had excellenteffects than most common magnetic separators. this machine was also easy to clean iron.just in ten seconds to completewashing out all ron. for enterprise who want to update whiteness and purity of raw materials. this equipment was the firstchoice.
Performance characteristics:
Unique design. the magnetic field strength in working chamber reach to 18000GS. with excellent effects on iron remova.
Vibrating motors plus auxiliary high-pressure water washing.rinse fast.just in ten seconds to complete a cleaning.
Using forced oil circulation water cooling. with ideal cooling effect.
Coil temperature with real-time monitoring (automatic model with automatic temperature control). effectively avoidingthe coil burned caused by too high temperature.
For hand controlled type.Just use buttons on the operator control panel to complete feeding. separating and cleaning.the operation is very convenient.
For automatic controlled type. no need manual operation. the system automatically to complete all the operations according to procedures.
