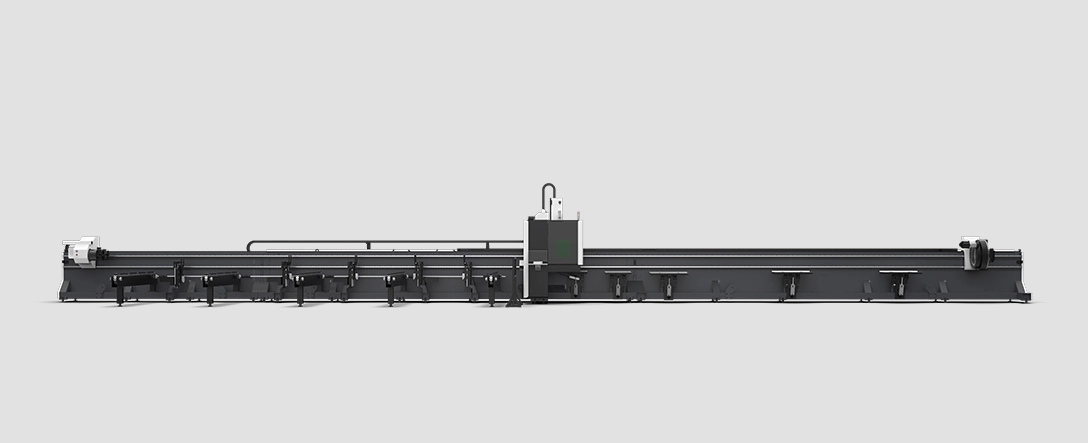

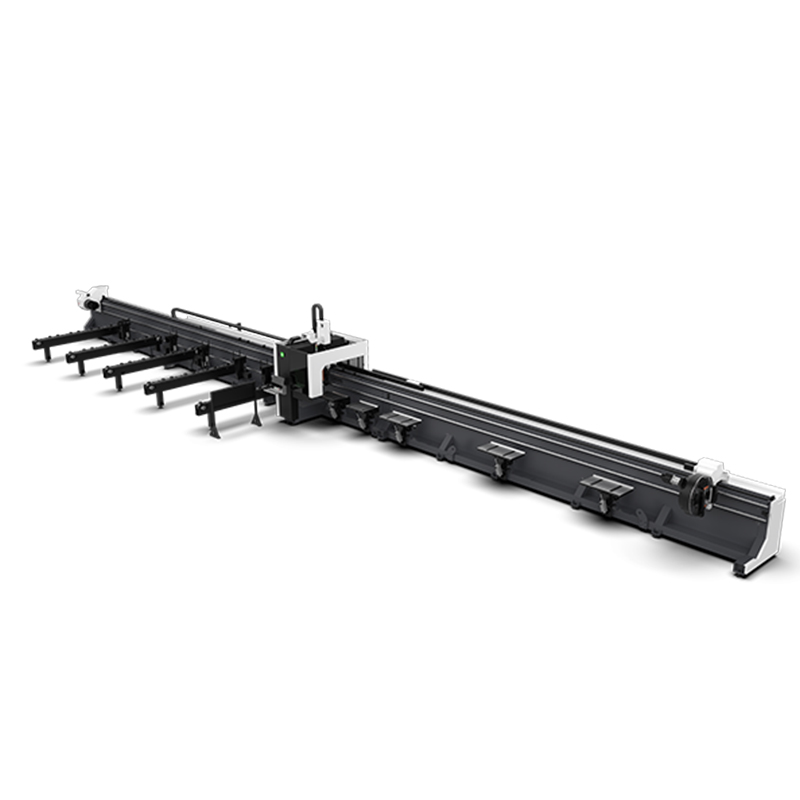

Full-Free Heavy-Duty Laser Pipe Cutting Machine M36 Series

Three-Chuck Free Movement, Collaborative Processing, Stable & Efficient

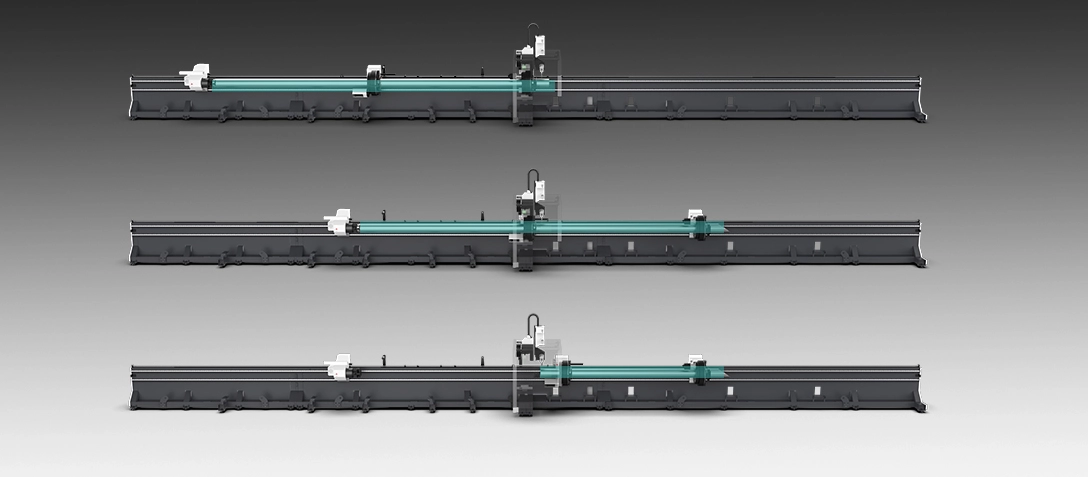

Three-chuck full-movement design enables collaborative processing, providing more stable support for long workpieces. It solves the problem of profile shaking during cutting, comprehensively improving cutting quality and production efficiency.

Full Pipe Processing, Zero Scrap – Maximizing Material Utilization

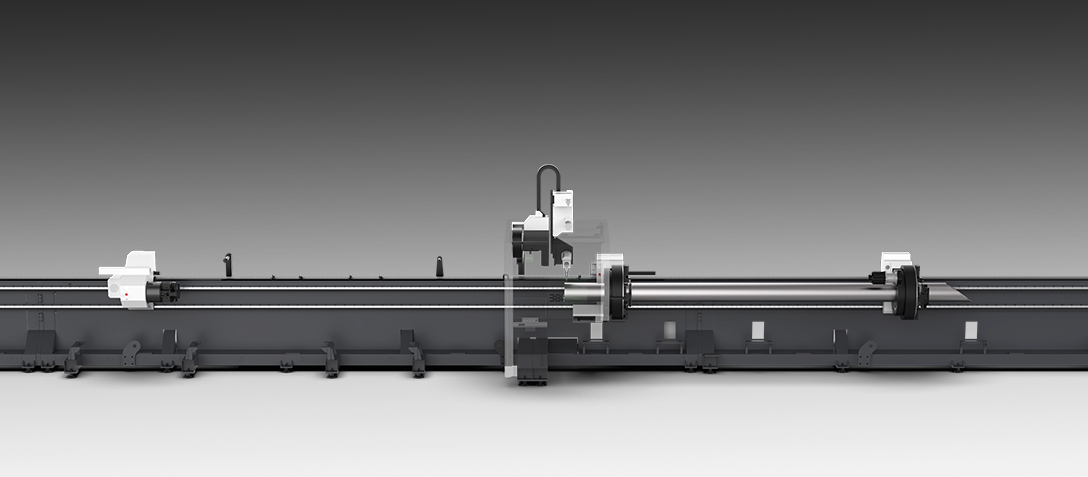

By clamping the pipe with the third chuck for forward or reverse movement, full-length pipe processing or the final finished section processing is realized. It maximizes material utilization and supports sustainable and efficient manufacturing.

Two-Chuck & Three-Chuck Free Switching, Doubling Efficiency

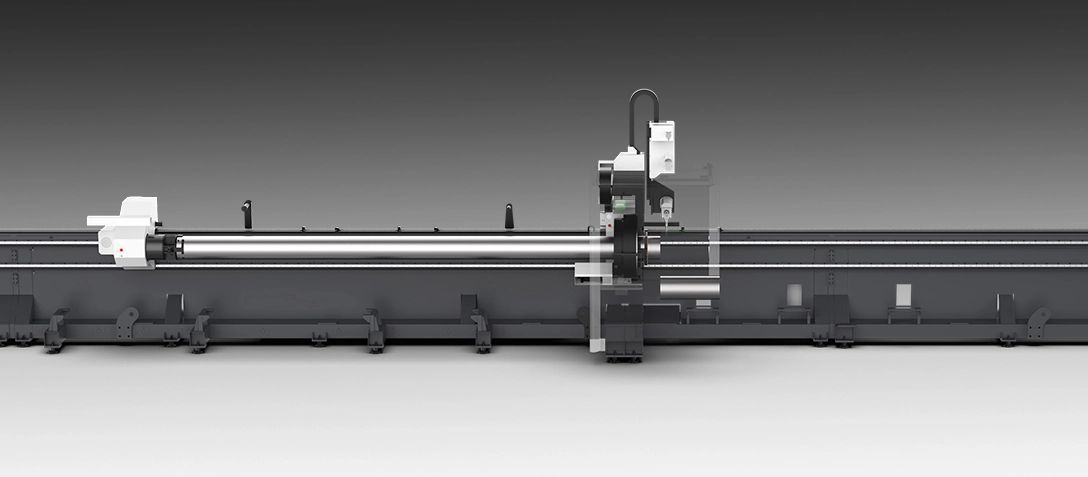

When full pipe processing is not required, the two-chuck mode can be switched. Blanking only uses the follow-up flap for material discharge, eliminating the material pulling time of the third chuck and maximizing processing efficiency.

Efficient Circular Feeding, Continuous Operation Saves More Time

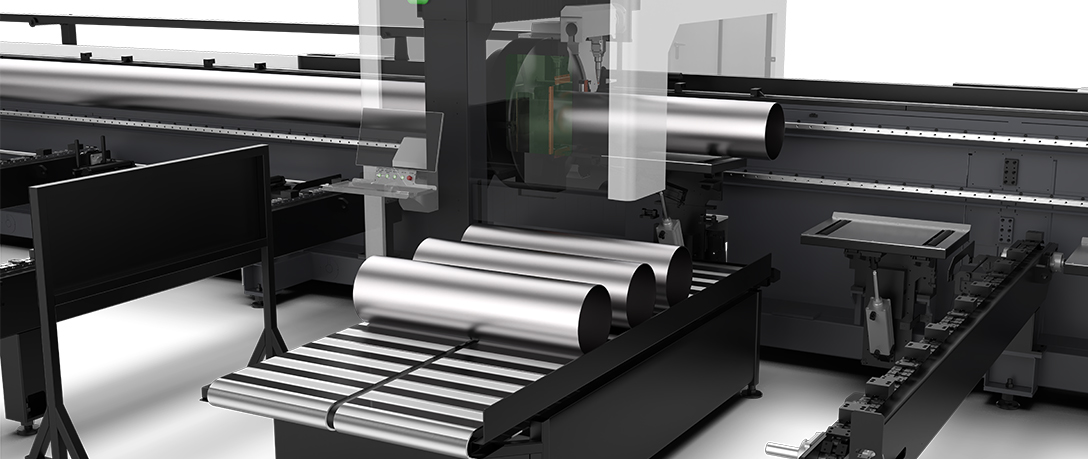

Adopting chain drive feeding, it features stable and efficient performance, automatic centering, and servo lifting. It automatically adjusts the feeding height according to pipe specifications, shortening production time, improving safety, saving labor, and reducing production costs.

Intelligent and Efficient Processing

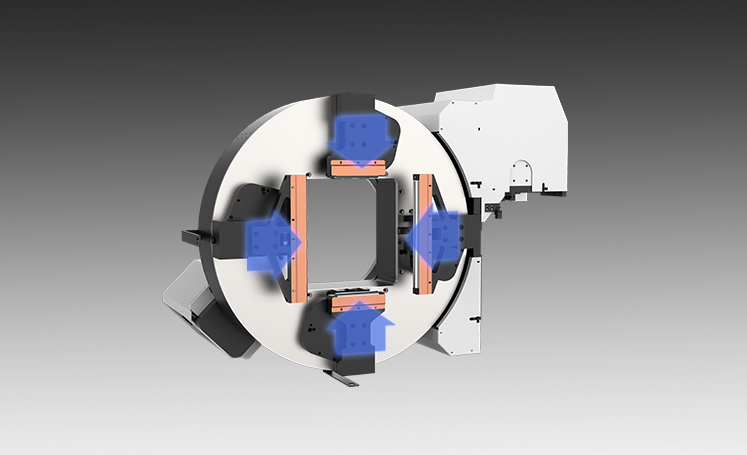

Full-Stroke Precision Chuck Clamping

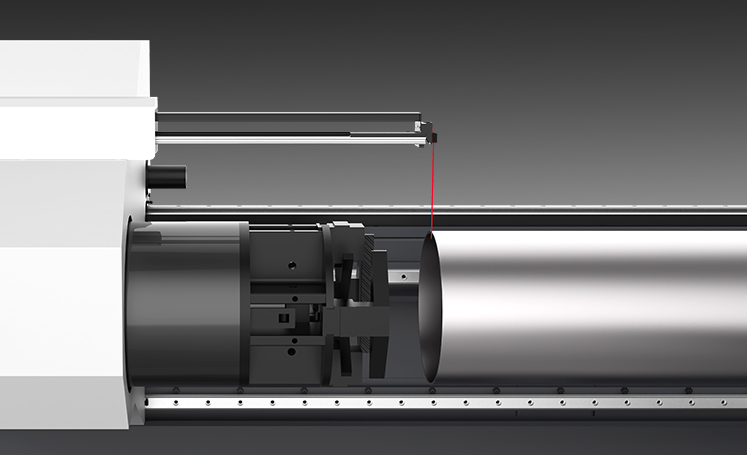

Pipe Head Detection, Precise Positioning

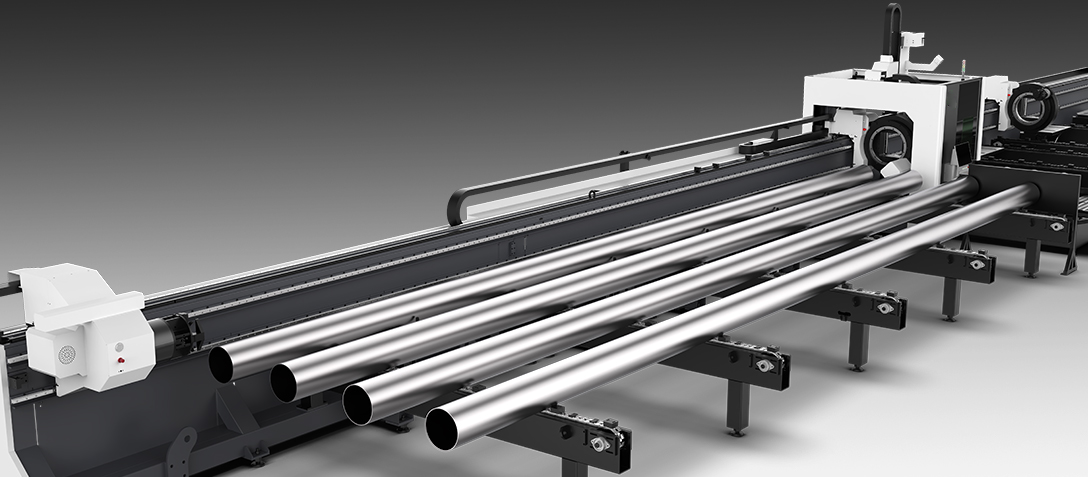

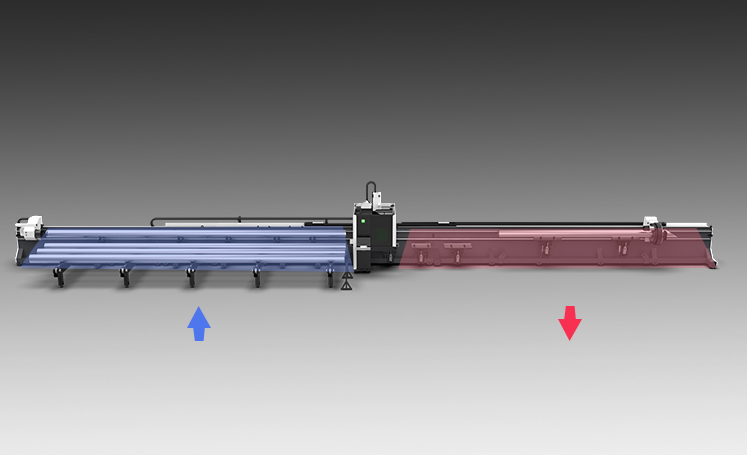

Loading & Stock Preparation in Parallel, Efficient Production

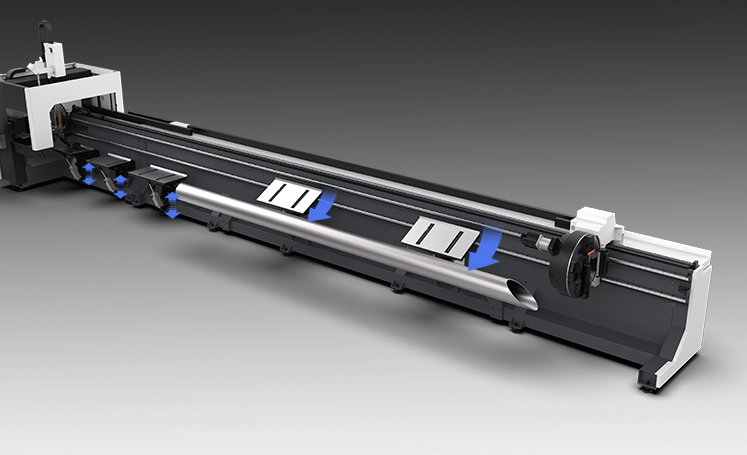

Follow-up Flap Blanking, Safe and Efficient

Technical Parameters

Optional

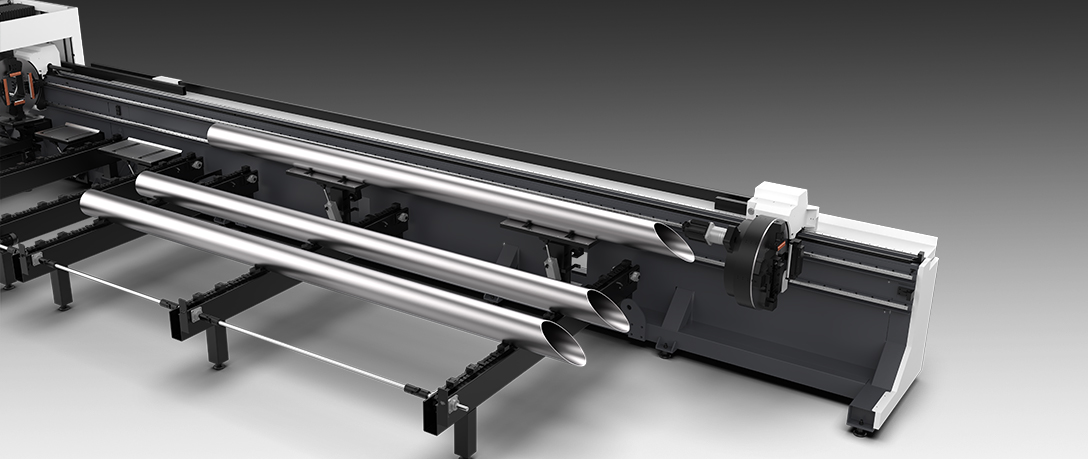

Short Pipe Conveying and Blanking

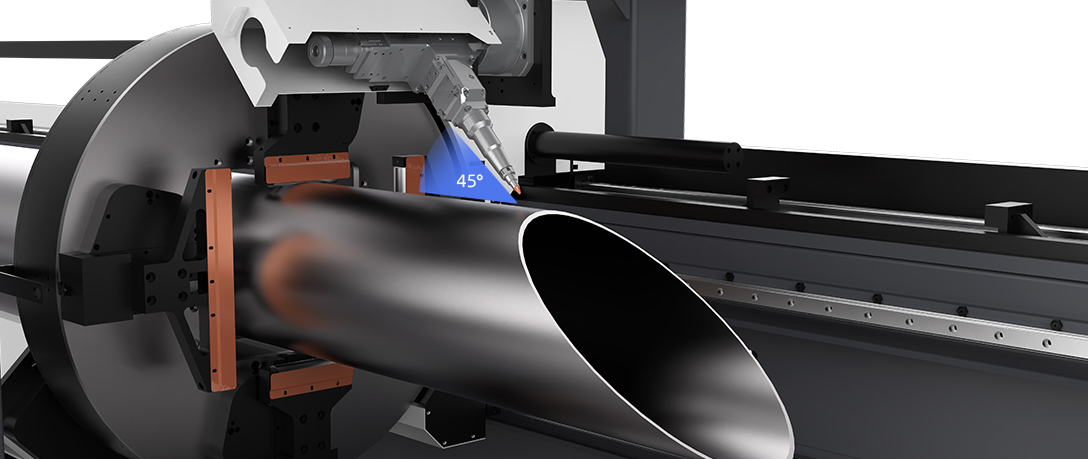

Bevel Cutting

Auxiliary Blanking

Industries Applicable to Our Products

Our products are widely used in heavy machinery, building structures, oil pipelines, construction machinery and other industries.
