YSDCG Series Dry Electromagnetic Powder Iron Remover

Overview:

With the continuous improvement of requirements for the purity index of powder materials in the domestic and foreign materials field, the iron removal and purification treatment of powder materials has become a problem that these industries are eager to solve. Due to the particularity of powder materials, the iron removal effect of many iron removal equipment has been unsatisfactory, and they are troublesome to clean, failing to meet the requirements of enterprises. After years of exploration and research, our company has successfully developed the cost-effective YSDCG series dry electromagnetic powder iron remover on the basis of learning from foreign advanced technologies and combining the usage requirements of domestic enterprises for iron removal equipment. This machine has a unique design, with a magnetic field strength as high as 18,000 - 20,000 gauss, strong suction and capturing power. It can not only basically remove magnetic substances such as mechanical iron mixed in the powder processing process, but also remove most of the iron oxide (Fe₂O₃) and other weakly magnetic impurities in the raw ore that are difficult to remove by general iron removal equipment, with excellent iron removal effect. This machine is convenient for iron cleaning, and can complete iron discharge in only ten seconds. It can be used alone or in series or parallel combination of multiple units to further improve the iron removal effect and processing capacity. For enterprises that want to improve the quality and grade of their products, this machine is indeed the first choice.

Performance characteristics:

◆ Unique design, with a magnetic field strength of up to 18,000 - 20,000 gauss in the working chamber, excellent iron removal effect, and high cost performance:

◆ Qingtie is convenient and fast; it only takes a dozen seconds to complete one iron removal:

◆ Adopting forced oil circulation water cooling method, the cooling effect is ideal;

◆ During operation, the magnetic cavity is in a vibrating state to ensure smooth material flow;

◆ Measures such as vibration and noise reduction are taken to ensure stable operation of the equipment with low noise;

◆ It has real-time temperature detection and automatic control functions. When the oil temperature rises to the set value, the system will automatically alarm until it shuts down, thus effectively preventing the coil from being burned due to excessive temperature rise;

◆ The fully automatic type adopts PLC intelligent control, which automatically completes all actions such as excitation, feeding, and iron removal without manual operation, reducing enterprise operating costs and effectively avoiding human factors that affect the iron removal effect. The color touch screen is used to set parameters, operate with touch buttons and display working status, and is equipped with a manual operation panel, featuring advanced technology and humanization.

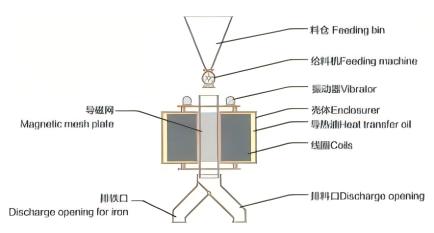

Working principle of the iron remover:

When the coil is energized, it generates a magnetic field. The magnetic field forms a high-density magnetic field in the magnetic cavity through the magnetically conductive loop. The magnetically conductive mesh in the magnetic cavity is magnetized to produce a strong magnetic field. When the powder material passes through the magnetically conductive mesh group, the magnetic impurities in it are adsorbed on the magnetically conductive mesh sheets, while the non-magnetic materials are discharged through the discharge port. During iron cleaning, the coil is de-energized and loses its magnetism, and the magnetically conductive mesh also loses its magnetism at the same time. The magnetic impurities lose their attractive force and are discharged through the iron discharge port under the action of gravity and vibration force.
